8-bit I²C/SMBus I/O expander, surface mount TSSOP 16-pin package. Operates with supply voltages from 1.65V to 5.5V, supporting up to 400kHz communication frequency. Features 8 configurable I/O pins with a maximum output current of 25mA per pin. RoHS compliant with a wide operating temperature range of -40°C to 85°C.
Frequency400kHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCAL6408APWJ technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 400kHz |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Output Current | 25mA |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCAL6408APWJ Datasheet
Download the complete datasheet for NXP PCAL6408APWJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

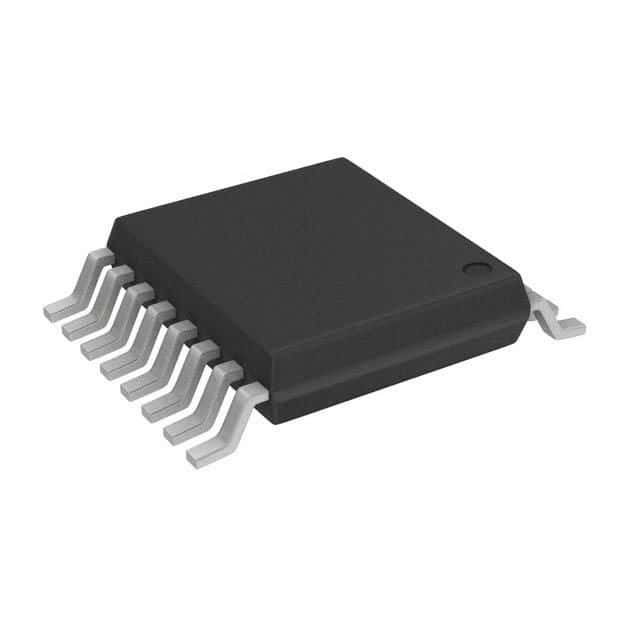

Product Images
