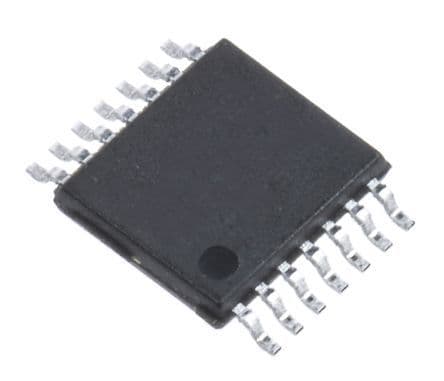

Real Time Clock IC with SPI, 3-wire interface, operating from 1.1V to 5.5V. Features a 32.768kHz frequency, supporting HH:MM:SS time format. This industrial-grade component is housed in a 14-pin TSSOP package for surface mounting. It includes clock, calendar, alarm, and timer functions, with a single output. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCF2123TS/1,118 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCF2123TS/1,118 technical specifications.
| Package/Case | TSSOP |
| Frequency | 32.768kHz |
| Height | 0.95mm |
| Interface | SPI, 3-WIRE |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Temperature Grade | INDUSTRIAL |
| Time Format | HH:MM:SS |
| Weight | 0.004949oz |
| Width | 4.5mm |
| RoHS | Compliant |
