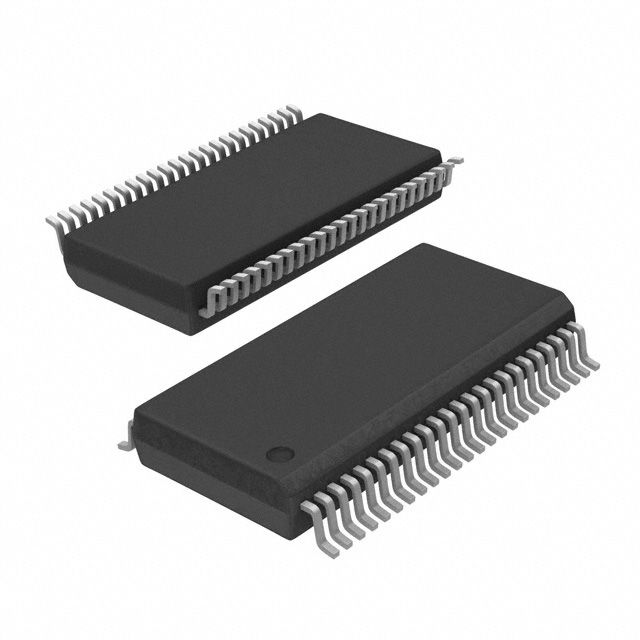

128-segment LCD driver IC for dot matrix displays, featuring a segment display mode and multiplexed display capability. Operates with I2C and 2-wire serial interfaces, supporting frequencies up to 400kHz. This surface-mount component is housed in a 48-pin TSSOP package and is RoHS compliant. It functions across a wide temperature range of -40°C to 85°C, with supply voltages from 1.8V to 5.5V and a maximum input voltage of 6.5V.
Checking distributor stock and pricing after the page loads.
| Package/Case | TSSOP |
| Display Mode | Segment |
| Display Type | LCD |
| Frequency | 400kHz |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Input Voltage | 6.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Current | 20uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Multiplexed Display Capability | Yes |
| Number of Elements | 128 |
| Number of Segments | 128 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 20uA |
| Weight | 0.01485oz |
| RoHS | Compliant |
