Industrial-grade Real Time Clock (RTC) IC with I2C interface, featuring serial clock, calendar, alarm, and timer functions. Operates from 1.8V to 5.5V supply voltage, with a temperature range of -40°C to 85°C. Packaged in a lead-free, RoHS-compliant TSSOP for surface mounting, supplied on tape and reel.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCF8563TS/4,118 technical specifications.
General
| Package/Case | TSSOP |
| Interface | I2C |
| Lead Free | Lead Free |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Temperature Grade | INDUSTRIAL |
| Time Format | HH:MM:SS |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCF8563TS/4,118 Datasheet
Download the complete datasheet for NXP PCF8563TS/4,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

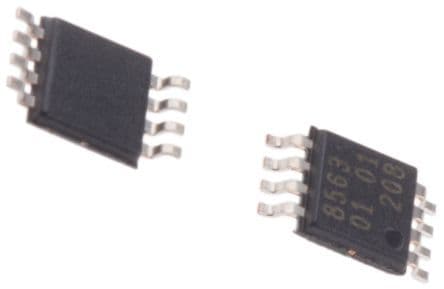

Product Images
