8-bit Analog-to-Digital (A/D) and Digital-to-Analog (D/A) converter, featuring a single-ended input and I2C serial interface. This general-purpose IC offers 4 channels with 8-bit resolution and a sampling rate of 11.1 kS/s, boasting a 40dB Signal-to-Noise Ratio. Operating from a 2.5V to 6V supply, it is housed in a 16-pin SO package for surface mounting, with dimensions of 10.5mm (L) x 7.6mm (W) x 2.45mm (H) and a maximum power dissipation of 300mW. This component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageSO
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
NXP PCF8591T/2,512 technical specifications.
General
| Package/Case | SO |
| Height | 2.45mm |
| Input Type | SINGLE-ENDED |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 8 |
| Number of Channels | 4 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Power Consumption | 300mW |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 11.1KS/s |
| Signal to Noise Ratio (SNR) | 40dB |
| Type | General Purpose |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCF8591T/2,512 Datasheet
Download the complete datasheet for NXP PCF8591T/2,512 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

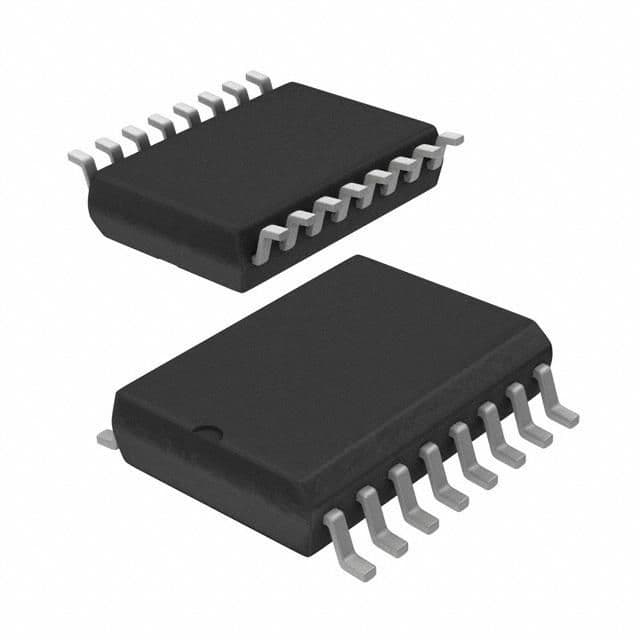

Product Images
