Digital temperature sensor with I²C interface, offering 11-bit resolution and ±1°C accuracy. Operates across a wide temperature range from -55°C to 125°C, powered by a 2.7V to 5.5V supply. Features a thermal watchdog function and a low supply current of 125µA, packaged in a SON 8-pin configuration on tape and reel.
PackageSON
Current125uA
Quick Jump:
Technical Specifications
NXP PCT2075TP,147 technical specifications.
General
| Package/Case | SON |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 200uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Output Type | I2C, Digital |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 11b |
| RoHS Compliant | Yes |
| Series | PCT2076 |
| Supply Current | 125uA |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCT2075TP,147 Datasheet
Download the complete datasheet for NXP PCT2075TP,147 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

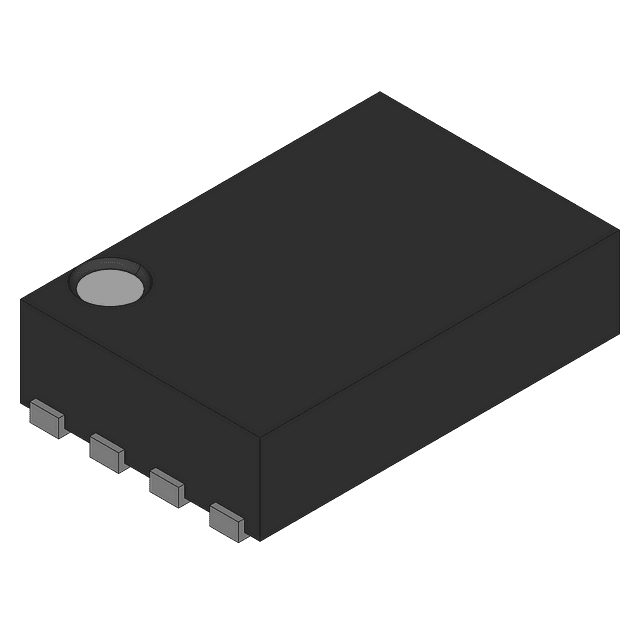

Product Images
