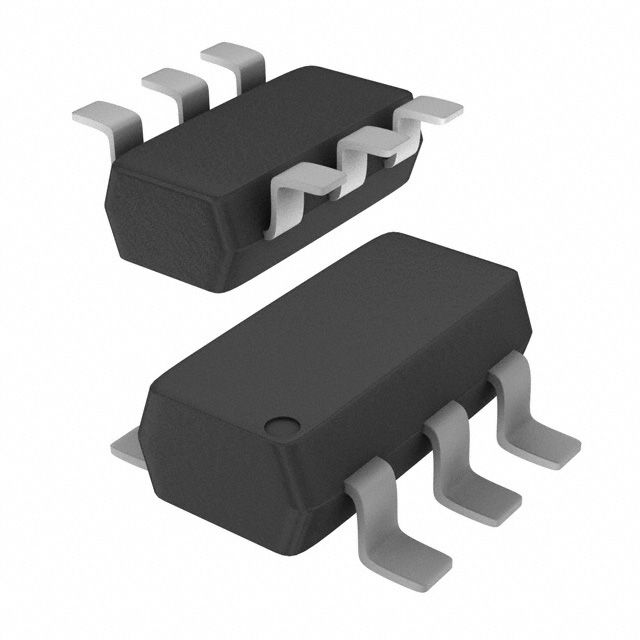

Unidirectional/bidirectional TVS diode for circuit protection, featuring a 12V working voltage and 24V clamping voltage. This surface mount component offers 200W peak pulse power and 10A peak pulse current, with a low leakage current of 15nA. Designed with 4 channels and a 100pF capacitance, it operates within a temperature range of -65°C to 150°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PESD12VS4UD,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PESD12VS4UD,115 technical specifications.
| Capacitance | 100pF |
| Package/Case | TSOP |
| Clamping Voltage | 24V |
| Clamping Voltage-Max | 17V |
| Depth | 1.7mm |
| Direction | Unidirectional, Bidirectional |
| ESD Protection | Yes |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 15nA |
| Length | 3.1mm |
| Max Breakdown Voltage | 16V |
| Min Breakdown Voltage | 12.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200W |
| Max Reverse Leakage Current | 15nA |
| Max Surge Current | 10A |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 12.5V |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | PESDxS4UD |
| Termination | SMD/SMT |
| Width | 1.7mm |
| Working Voltage | 12V |
| RoHS | Compliant |
