Unidirectional quadruple ESD protection diode array, featuring very low capacitance of 18pF. This surface mount component operates at 3.3V with a reverse breakdown voltage of 5.3V and a clamping voltage of 11V. It offers a peak pulse current of 1.5A and a peak pulse power of 16W, with a leakage current of 300nA. Designed for demanding applications, it operates across a wide temperature range from -65°C to 150°C and is RoHS compliant.
PackageSOT-353
Capacitance18pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PESD3V3V4UG,115 technical specifications.
General
| Capacitance | 18pF |
| Package/Case | SOT-353 |
| Clamping Voltage | 11V |
| Depth | 1.35mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 300nA |
| Length | 2.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 16W |
| Max Surge Current | 1.5A |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.5A |
| Peak Pulse Power | 16W |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5.3V |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Series | PESDxV4U |
| Termination | SMD/SMT |
| Working Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
NXP PESD3V3V4UG,115 Datasheet
Download the complete datasheet for NXP PESD3V3V4UG,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

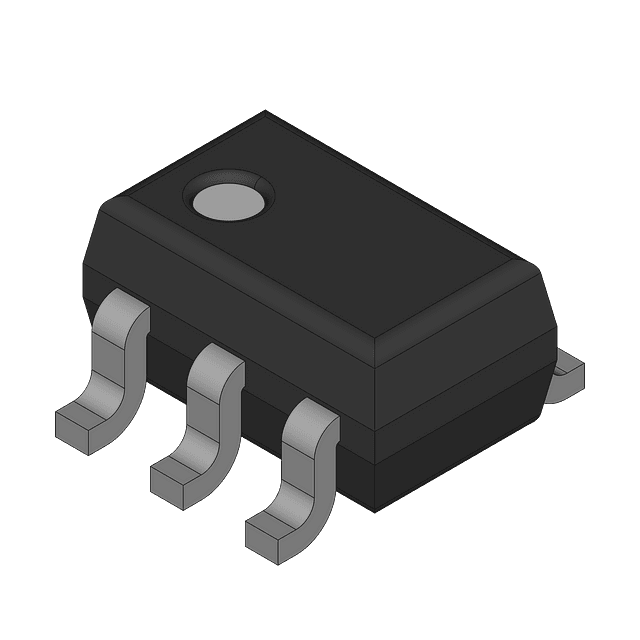

Product Images
