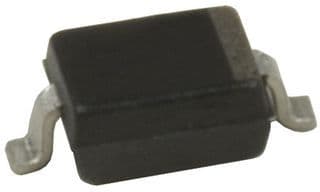

Bidirectional Transient Voltage Suppressor Diode, featuring low capacitance for ESD protection. This silicon diode offers a repetitive peak reverse voltage of 5V and a breakdown voltage range from 7V to 8.2V, with a nominal value of 7.6V. It provides a maximum clamping voltage of 33V and a non-repetitive peak reverse power dissipation of 500mW. Designed with 2 terminals in a SOD323 package, this component operates up to a maximum temperature of 150°C.
Sign in to ask questions about the NXP PESD5V0L1BA,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PESD5V0L1BA,115 technical specifications.
| Max Operating Temperature | 150 |
| Number of Terminals | 2 |
| Terminal Position | DUAL |
| Pin Count | 2 |
| Number of Elements | 1 |
| Polarity | BIDIRECTIONAL |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Rep Pk Reverse Voltage-Max | 5 |
| Breakdown Voltage-Min | 7 |
| Non-rep Peak Rev Power Dis-Max | 500 |
| Clamping Voltage-Max | 33 |
| Breakdown Voltage-Nom | 7.6 |
| Breakdown Voltage-Max | 8.2 |
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.50 |
| REACH | Compliant |
| Military Spec | False |
