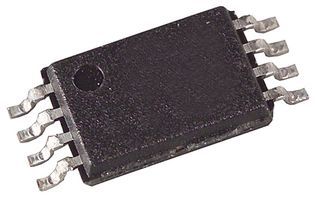

Bidirectional TVS Diode for circuit protection, featuring a 5V reverse standoff voltage and 17V clamping voltage. This component offers 2.5A peak pulse current capability and 35W peak pulse power dissipation. With a low 10pF capacitance and 25nA leakage current, it is designed for surface mount applications in a TSSOP package. Operating across a wide temperature range of -65°C to 150°C, it provides robust ESD protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PESD5V0L7BAS118 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PESD5V0L7BAS118 technical specifications.
| Capacitance | 10pF |
| Package/Case | TSSOP |
| Clamping Voltage | 17V |
| Clamping Voltage-Max | 17V |
| Current | 25A |
| Depth | 3.1mm |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Leakage Current | 25nA |
| Length | 3.1mm |
| Max Breakdown Voltage | 7.9V |
| Min Breakdown Voltage | 7.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 35W |
| Max Reverse Leakage Current | 25nA |
| Max Surge Current | 2.5A |
| Mount | Surface Mount |
| Number of Channels | 7 |
| Number of Elements | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.5A |
| Peak Pulse Power | 35W |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 7.2V |
| Reverse Standoff Voltage | 5V |
| Series | PESD5V0L7BS |
| Termination | SMD/SMT |
| Voltage | 17V |
| Width | 3mm |
| Working Voltage | 5V |
| RoHS | Compliant |
