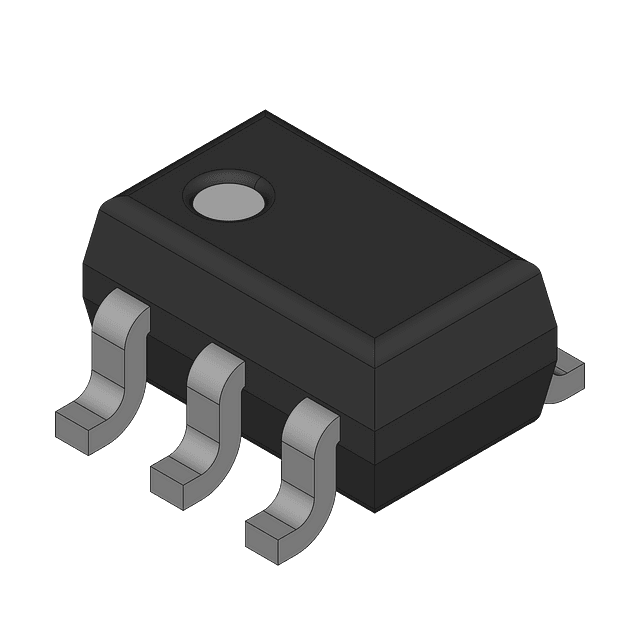

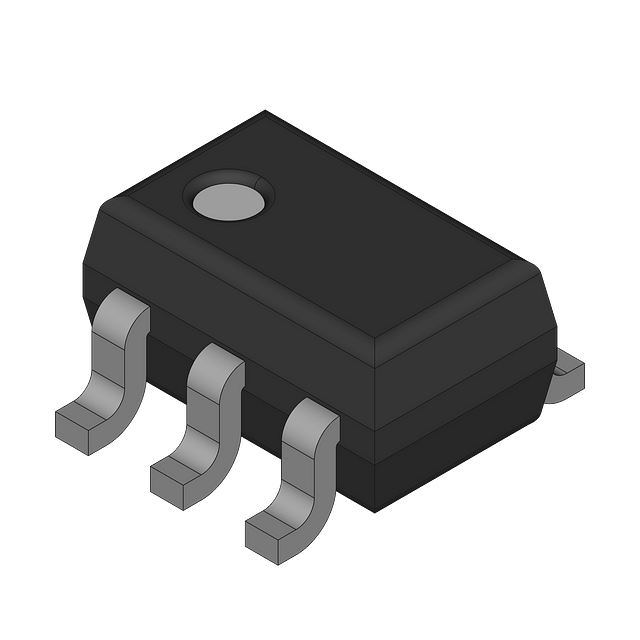

Unidirectional quadruple ESD protection diode array, featuring very low capacitance of 15pF. This surface mount component operates at 5V, with a maximum breakdown voltage of 7.2V and a clamping voltage of 13V. Designed for transient voltage suppression, it offers 1.5A peak pulse current handling and 16W peak pulse power dissipation. Packaged in a compact SOT-353 (TSSOP 5-Pin) with dimensions of 2.2mm x 1.35mm x 1mm, it operates from -65°C to 150°C and is lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PESD5V0V4UG,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 15pF |
| Package/Case | SOT-353 |
| Clamping Voltage | 13V |
| Clamping Voltage-Max | 11V |
| Depth | 1.35mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 25nA |
| Length | 2.2mm |
| Max Breakdown Voltage | 7.2V |
| Min Breakdown Voltage | 6.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 16W |
| Max Reverse Leakage Current | 25nA |
| Max Surge Current | 1.5A |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.5A |
| Peak Pulse Power | 16W |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | PESDxV4U |
| Termination | SMD/SMT |
| Width | 1.35mm |
| Working Voltage | 5V |
| RoHS | Compliant |
