MountingSurface Mount
PolarityN-CHANNEL
Power62.5W
Quick Jump:
Technical Specifications
NXP PH9025L,115 technical specifications.
General
Continuous Drain Current (ID)
66A
Drain to Source Breakdown Voltage
25V
Drain to Source Resistance
9mR
Drain to Source Voltage (Vdss)
25V
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
1.414nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
62.5W
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
62.5W
Rds On Max
9mR
RoHS Compliant
Yes
Series
TrenchMOS™
Turn-Off Delay Time
24ns
Compliance
RoHS
Compliant
Datasheet
NXP PH9025L,115 Datasheet
Download the complete datasheet for NXP PH9025L,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

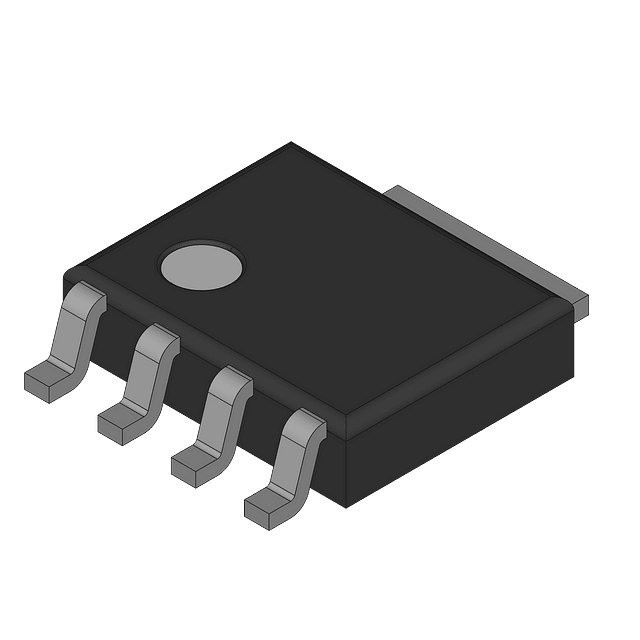

Product Images
