NXP PH9030AL,115 technical specifications.

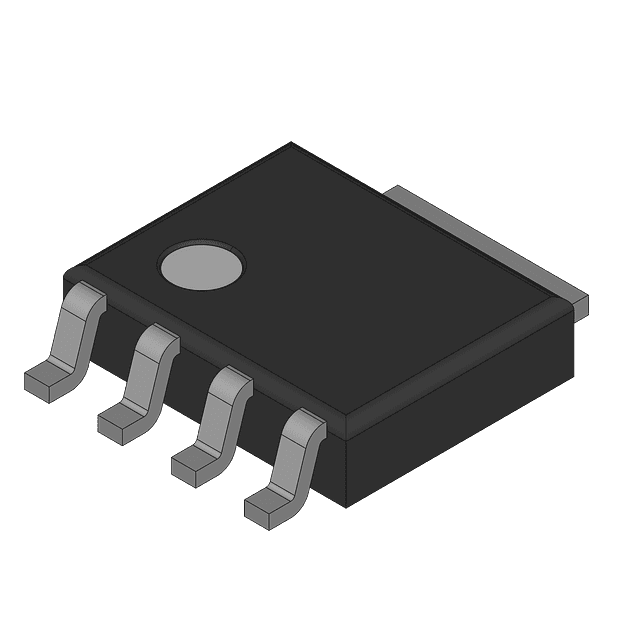

| Package/Case | SOT-669 |
| Continuous Drain Current (ID) | 61A |
| Drain to Source Breakdown Voltage | 35V |
| Drain to Source Resistance | 11mR |
| Drain to Source Voltage (Vdss) | 30V |
| Drain-source On Resistance-Max | 11MR |
| Fall Time | 9ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 1.006nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 46W |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 46W |
| Radiation Hardening | No |
| Rds On Max | 8mR |
| Series | TrenchMOS™ |
| Turn-Off Delay Time | 19ns |
| Turn-On Delay Time | 13ns |
| RoHS | Compliant |
Download the complete datasheet for NXP PH9030AL,115 to view detailed technical specifications.
