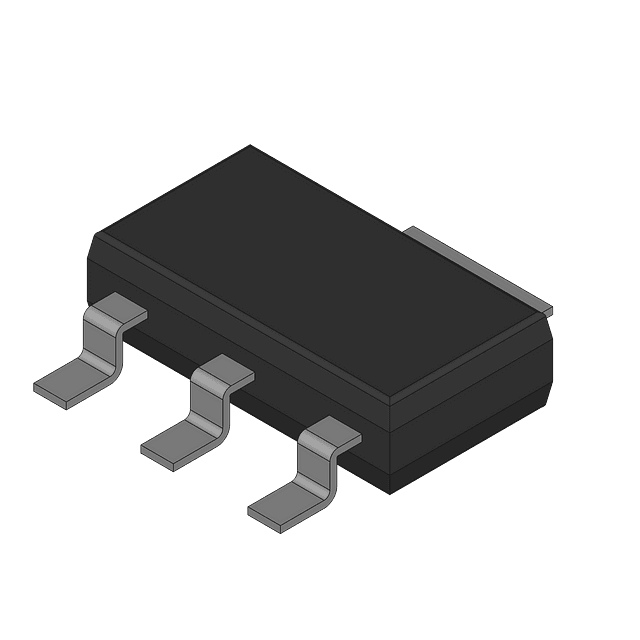

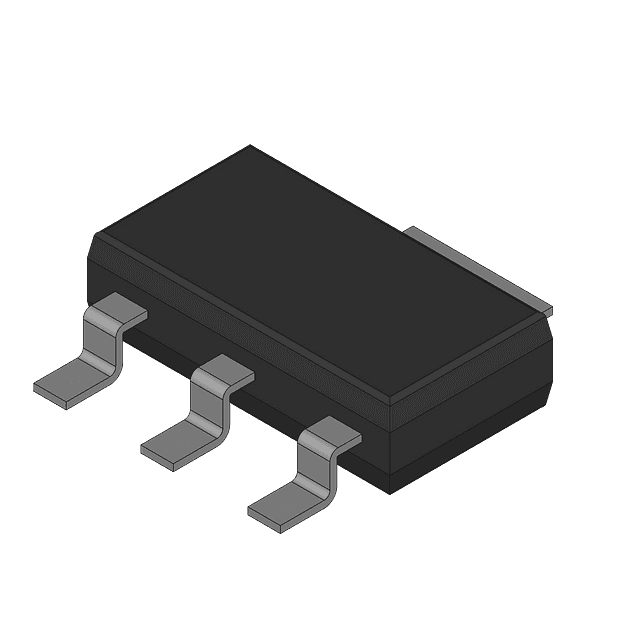

The PHT6N06LT,135 is a 55V N-Channel MOSFET with a continuous drain current of 2.5A. It features a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. The device is packaged in a SOT-223 case and is suitable for surface mount applications. The PHT6N06LT,135 is compliant with RoHS regulations and is available in tape and reel packaging.
Sign in to ask questions about the NXP PHT6N06LT,135 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PHT6N06LT,135 technical specifications.
| Package/Case | SOT-223 |
| Continuous Drain Current (ID) | 2.5A |
| Drain to Source Voltage (Vdss) | 55V |
| Dual Supply Voltage | 55V |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 8.3W |
| Nominal Vgs | 1.5V |
| Packaging | Tape and Reel |
| Power Dissipation | 8.3W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Threshold Voltage | 1.5V |
| RoHS | Compliant |
