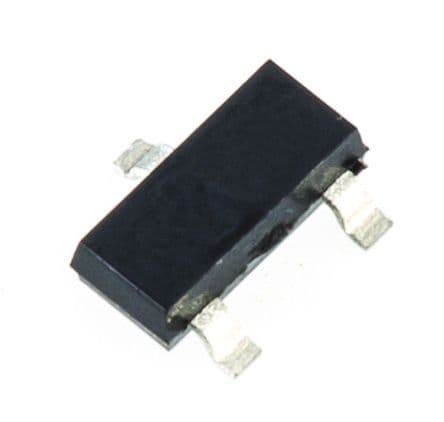

The PMBT2369 is a surface mount NPN transistor with a maximum collector current of 200mA and a maximum operating temperature of 150°C. It has a collector base voltage of 40V and a collector emitter breakdown voltage of 15V. The transistor is packaged in a TO-236AB plastic package and is RoHS compliant. It is suitable for high-frequency applications with a maximum frequency of 500MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PMBT2369 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-236AB |
| Collector Base Voltage (VCBO) | 40V |
| Collector Emitter Breakdown Voltage | 15V |
| Collector Emitter Saturation Voltage | 250mV |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 1mm |
| Length | 3mm |
| Max Collector Current | 200mA |
| Max Frequency | 500MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Polarity | NPN |
| Power Dissipation | 250mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 500MHz |
| Width | 1.4mm |
| RoHS | Compliant |
