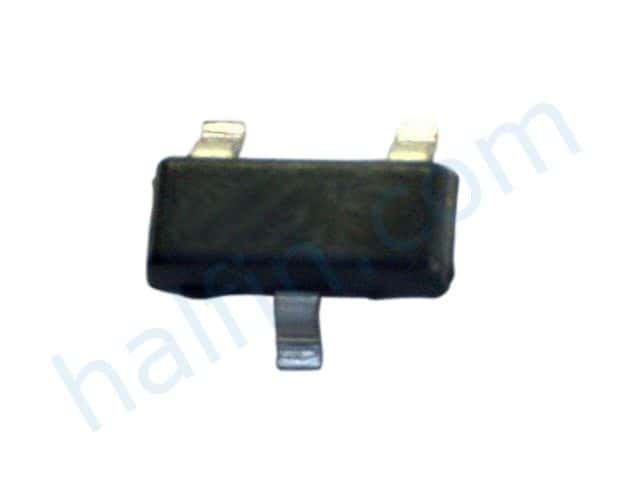

The PMBTA42 is a surface mount NPN bipolar junction transistor with a collector base voltage of 300V and a collector emitter saturation voltage of 500mV. It has a maximum collector current of 100mA and a maximum frequency of 50MHz. The transistor is packaged in a TO-236AB case and is suitable for operating temperatures between -65°C and 150°C. The PMBTA42 is RoHS compliant and is available in cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PMBTA42 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-236AB |
| Collector Base Voltage (VCBO) | 300V |
| Collector Emitter Breakdown Voltage | 300V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 500mV |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 1mm |
| hFE Min | 40 |
| Length | 3mm |
| Max Collector Current | 100mA |
| Max Frequency | 50MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |

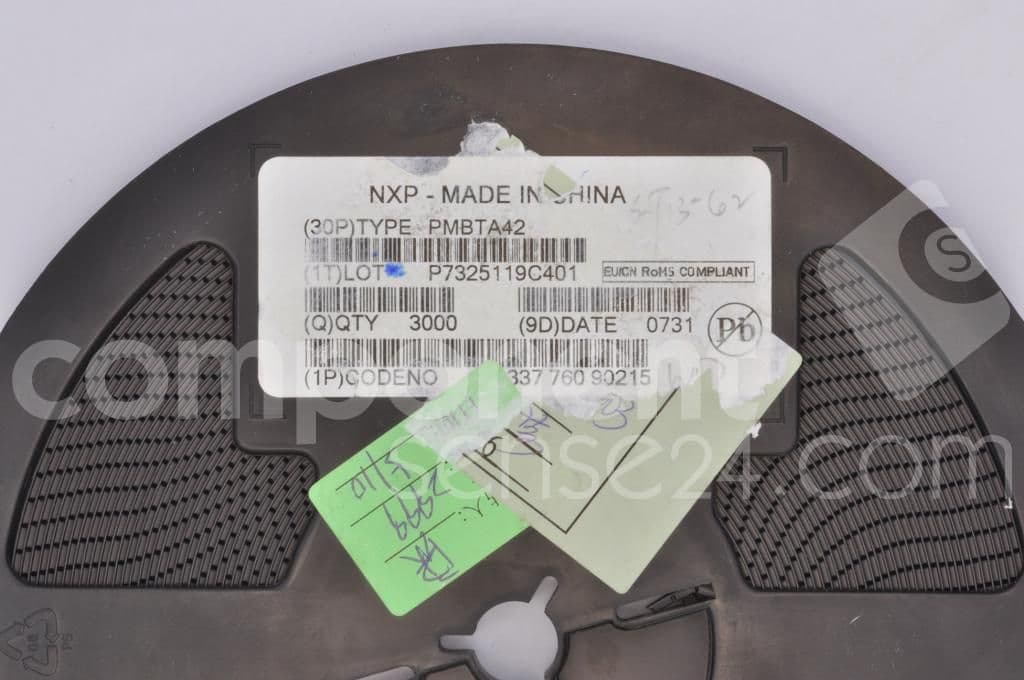

| Packaging | Cut Tape |
| Polarity | NPN |
| Power Dissipation | 250mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.4mm |
| RoHS | Compliant |
