N-channel MOSFET, 20V drain-source voltage, 6.3A continuous drain current. Features 28mΩ drain-source resistance at nominal Vgs, 700mV threshold voltage, and 1.75W maximum power dissipation. Packaged in a 6-pin TSOP for surface mounting, with dimensions of 3.1mm length, 1.7mm width, and 1mm height. Operates from -55°C to 150°C, with fast switching times including 8.5ns turn-on and 55ns turn-off delays. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PMN23UN,135 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

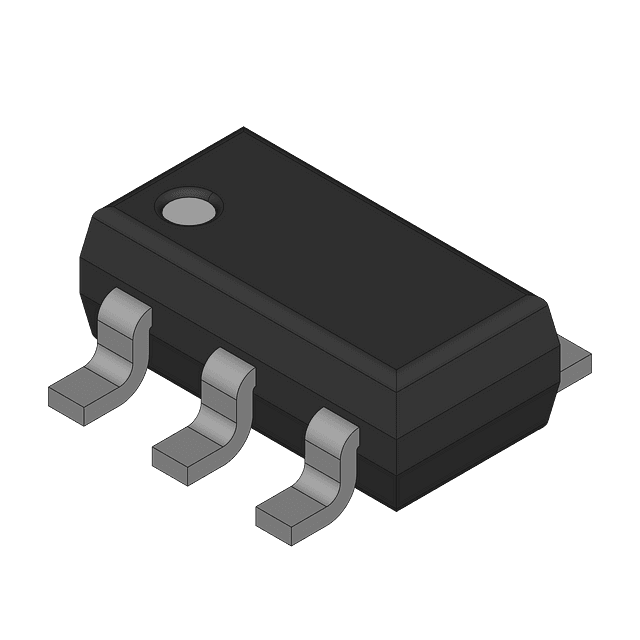

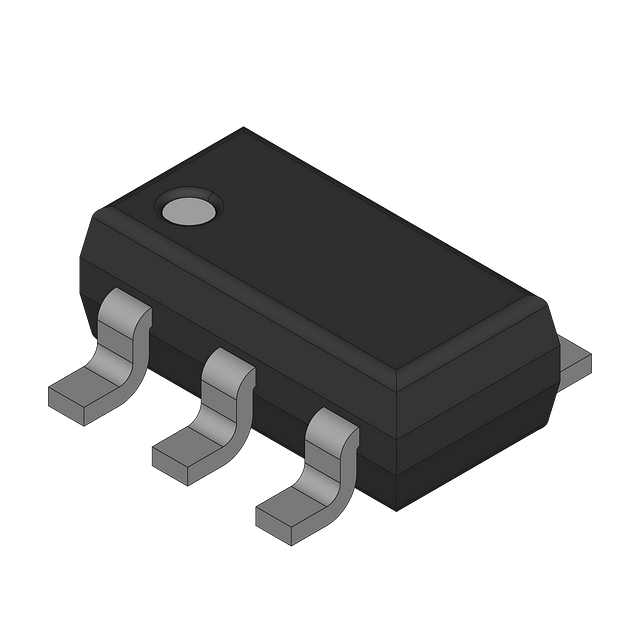

NXP PMN23UN,135 technical specifications.
| Package/Case | TSOP |
| Continuous Drain Current (ID) | 6.3A |
| Drain to Source Breakdown Voltage | 20V |
| Drain to Source Resistance | 28mR |
| Drain to Source Voltage (Vdss) | 20V |
| Dual Supply Voltage | 20V |
| Fall Time | 14.5ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 1mm |
| Input Capacitance | 740pF |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.75W |
| Mount | Surface Mount |
| Nominal Vgs | 700mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 1.75W |
| Radiation Hardening | No |
| Rds On Max | 28mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TrenchMOS™ |
| Termination | SMD/SMT |
| Threshold Voltage | 700mV |
| Turn-Off Delay Time | 55ns |
| Turn-On Delay Time | 8.5ns |
| Width | 1.7mm |
| RoHS | Compliant |
