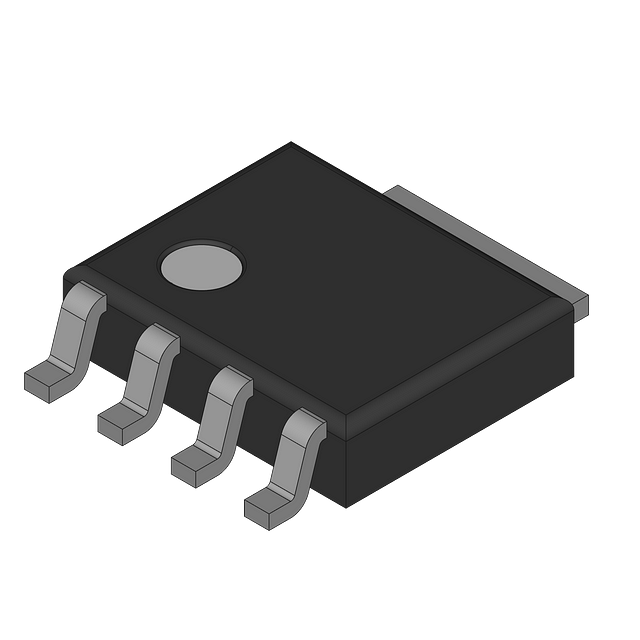

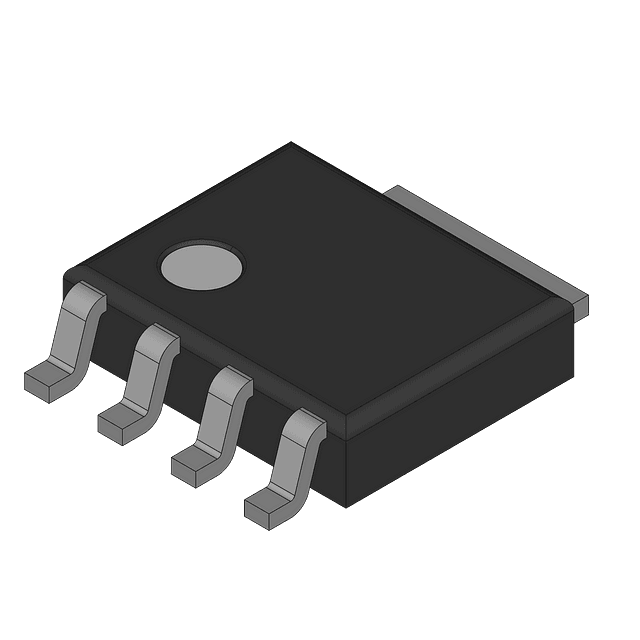

The PSMN010-25YLC,115 is a surface mount N-CHANNEL MOSFET with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a drain to source breakdown voltage of 22.5V and a continuous drain current of 39A. The device is packaged in a SO package and is lead free. It is RoHS compliant and has a maximum power dissipation of 30W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PSMN010-25YLC,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PSMN010-25YLC,115 technical specifications.
| Package/Case | SO |
| Continuous Drain Current (ID) | 39A |
| Drain to Source Breakdown Voltage | 22.5V |
| Drain to Source Resistance | 10.6mR |
| Drain to Source Voltage (Vdss) | 25V |
| Fall Time | 4.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 678pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 30W |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 30W |
| Radiation Hardening | No |
| Rds On Max | 10.6mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 11.5ns |
| Turn-On Delay Time | 10.7ns |
| RoHS | Compliant |
