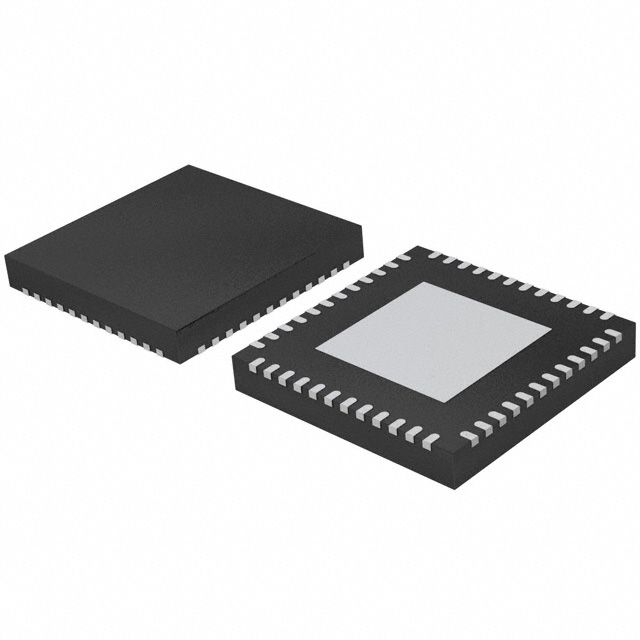

The SC16C554BIBS,551 is a 4-channel UART IC from NXP with a data rate of 5Mbps and a 16B FIFO. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage of 5V. The IC is packaged in a surface mount package and is compliant with RoHS regulations. The maximum supply current is 4.5mA and the minimum supply voltage is 2.25V.
Checking distributor stock and pricing after the page loads.
NXP SC16C554BIBS,551 technical specifications.
| Data Rate | 5Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 4.5mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 16B |
| Min Supply Voltage | 2.25V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Functions | 4 |
| Operating Supply Current | 6mA |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 4.5mA |
| Supply Voltage-Nom | 5V |
| RoHS | Compliant |
No datasheet is available for this part.
