The SC16C852SVIET,115 is a dual UART interface IC from NXP, operating over a temperature range of -40°C to 85°C. It features a data rate of 20Mbps and supports 2 channels. The device is packaged in TFBGA and is lead-free. The SC16C852SVIET,115 is RoHS compliant and has a maximum supply current of 2mA and a maximum supply voltage of 1.95V.
PackageTFBGA
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SC16C852SVIET,115 technical specifications.
General
| Package/Case | TFBGA |
| Data Rate | 20Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 1.95V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
Compliance
| RoHS | Compliant |
Datasheet
NXP SC16C852SVIET,115 Datasheet
Download the complete datasheet for NXP SC16C852SVIET,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

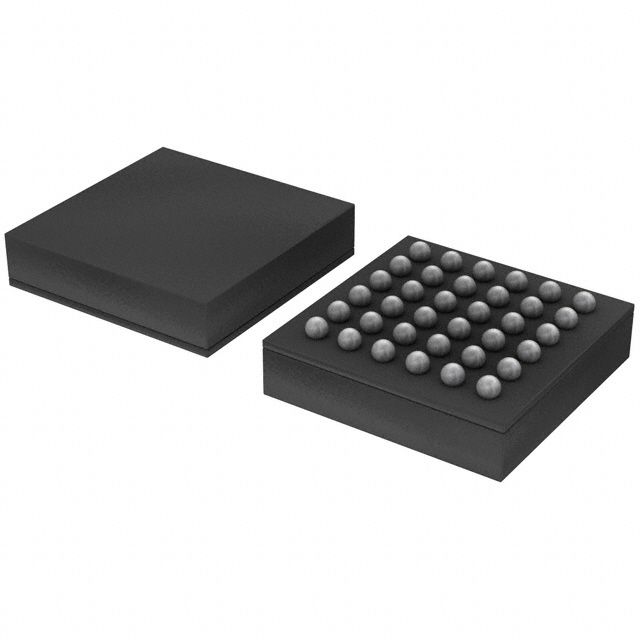

Product Images
