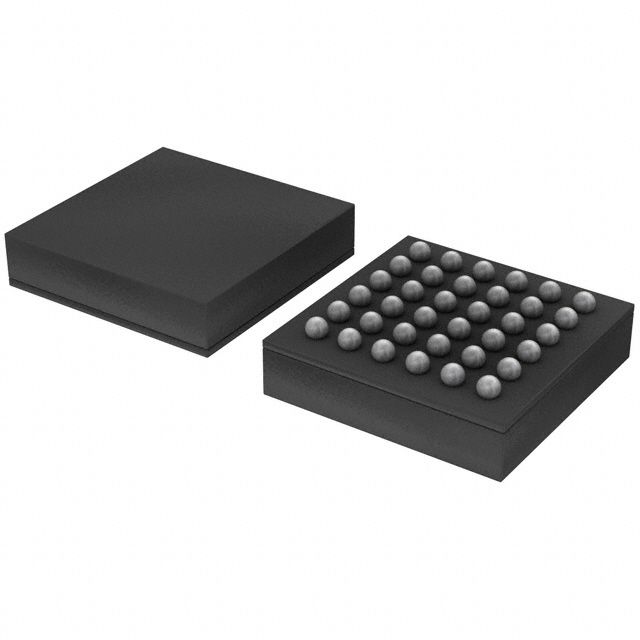

The SC16C852VIET151 is a dual UART I2C/SPI bridge from NXP, packaged in a TFBGA. It operates over a temperature range of -40°C to 85°C and is designed to work with a supply voltage of 1.8V. The device has a maximum supply current of 2mA and a maximum supply voltage of 1.95V. It is available in a lead-free package and is suitable for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP SC16C852VIET151 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP SC16C852VIET151 technical specifications.
| Package/Case | TFBGA |
| Data Rate | 5Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 1.95V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Supply Current | 2mA |
| RoHS | Compliant |
