Dual-channel UART interface IC supporting 5Mbps data rates. Features a 64-byte FIFO buffer per channel. Operates with a supply voltage range of 2.3V to 3.6V, with a nominal 3.3V. Packaged in a 32-pin HVQFN for surface mounting. RoHS compliant and lead-free.
PackageQFN
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SC16IS752IBS,151 technical specifications.
General
| Package/Case | QFN |
| Data Rate | 5Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 95°C |
| Memory Size | 64B |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Functions | 2 |
| Operating Supply Current | 6mA |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
NXP SC16IS752IBS,151 Datasheet
Download the complete datasheet for NXP SC16IS752IBS,151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

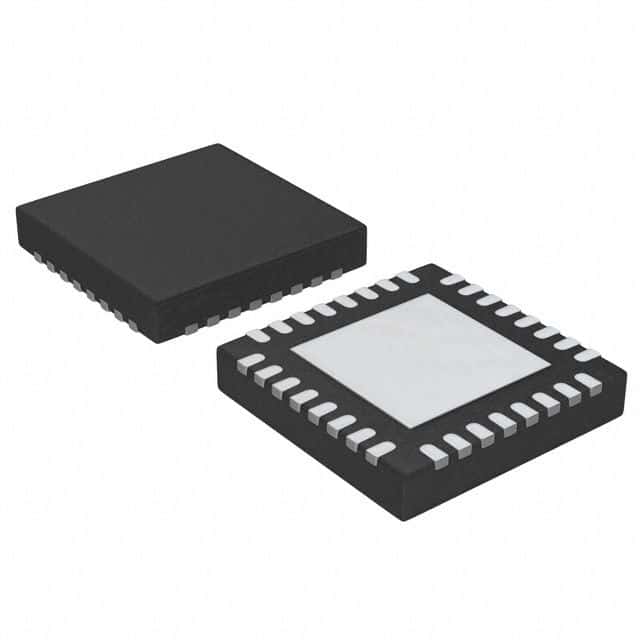

Product Images
