Dual-channel UART interface IC supporting 5Mbps data rates. Features 64-byte FIFOs for efficient data buffering. Operates with a supply voltage range of 2.3V to 3.6V, with a nominal 3.3V. Packaged in a 28-pin TSSOP for surface mounting. RoHS compliant and lead-free.
PackageTSSOP
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SC16IS762IPW,112 technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 5Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 95°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Functions | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 51 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Supply Voltage-Nom | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
NXP SC16IS762IPW,112 Datasheet
Download the complete datasheet for NXP SC16IS762IPW,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

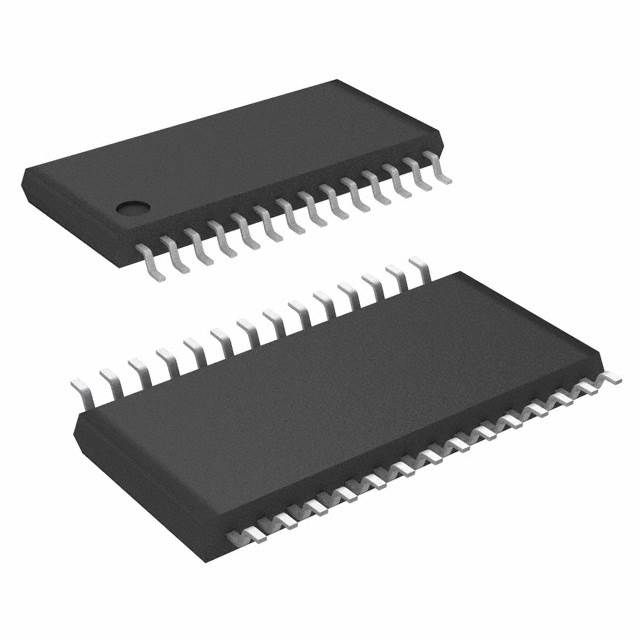

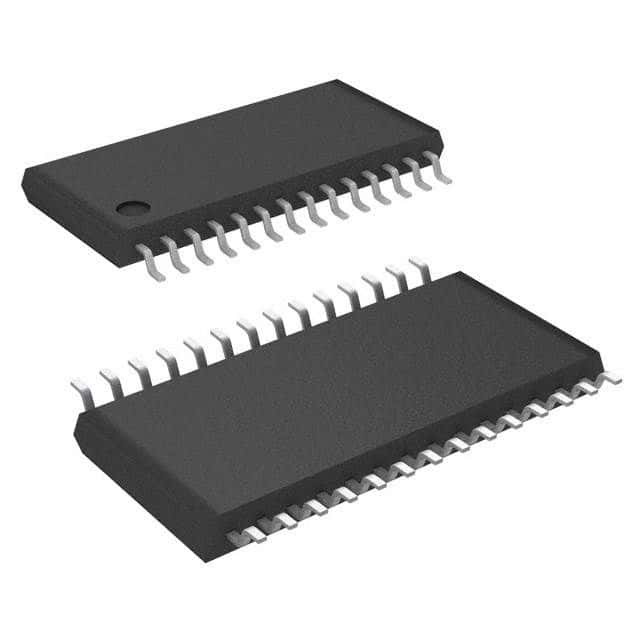

Product Images
