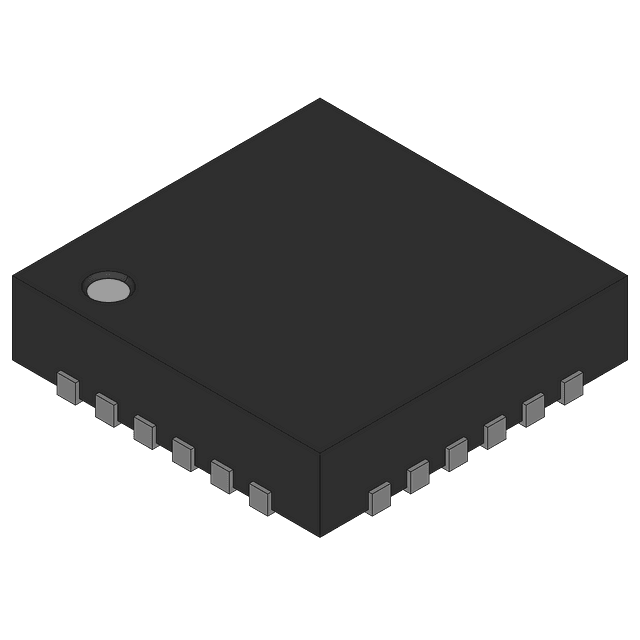

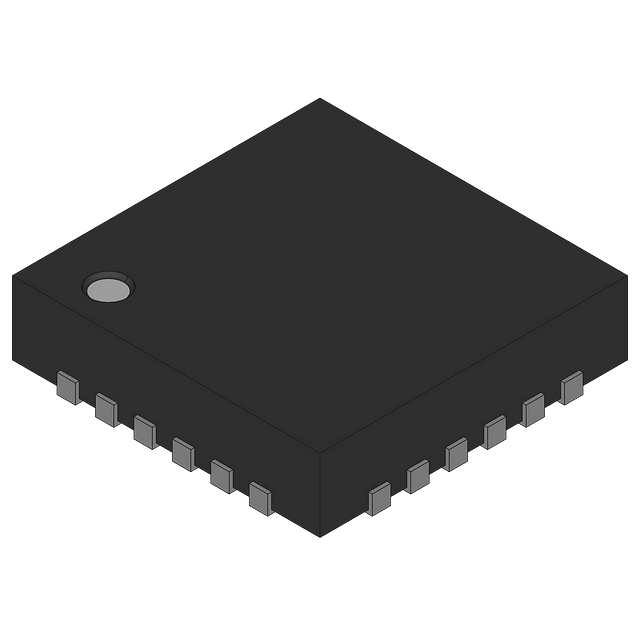

The SC16IS850LIBS157 is a single UART I2C/SPI bridge IC with a 64-byte FIFO and a data rate of up to 5 Mbps. It operates within a temperature range of -40°C to 85°C and has a maximum supply current of 2mA. The device is available in a TQFN-32 package and is compliant with AEC-Q100 standards. It is designed for surface mount applications and is packaged in a tray with 2450 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP SC16IS850LIBS157 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Data Rate | 5Mbps |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 1.95V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 2450 |
| Packaging | Tray |
| Radiation Hardening | No |
| Supply Current | 2mA |
| RoHS | Compliant |
