32-bit Coldfire microprocessor operating at 120MHz, featuring 128KB RAM and ROMless memory. This surface mount LQFP package offers 57 I/Os with I2C, SPI, UART, USART, and EBI/EMI interfaces. It supports a supply voltage range of 1.08V to 3.3V and operates between -20°C and 70°C. Integrated peripherals include POR, WDT, and DMA, with an internal oscillator. This RoHS and Halogen Free component is designed for tray packaging.
Frequency120MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP SCF5250AG120 technical specifications.
General
Access Time
120us
Package/Case
LQFP
Core Architecture
Coldfire
Data Bus Width
32b
Frequency
120MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Voltage
3.3V
Memory Type
ROMless,
Min Supply Voltage
1.08V
Mount
Surface Mount
Number of I/Os
57
Oscillator Type
Internal
Package Quantity
300
Packaging
Tray
Peripherals
POR, WDT, DMA
Radiation Hardening
No
RAM Size
128KB
RoHS Compliant
Yes
Series
SCF52xx
Weight
0.04653oz
Compliance
RoHS
Compliant
Datasheet
NXP SCF5250AG120 Datasheet
Download the complete datasheet for NXP SCF5250AG120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

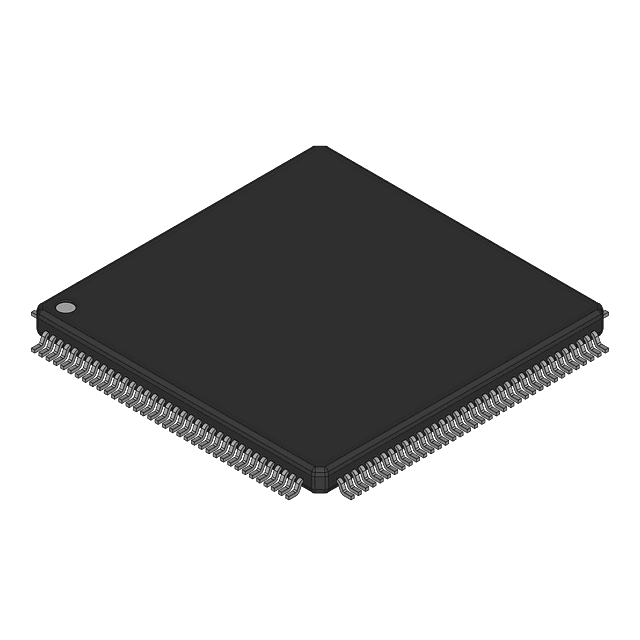

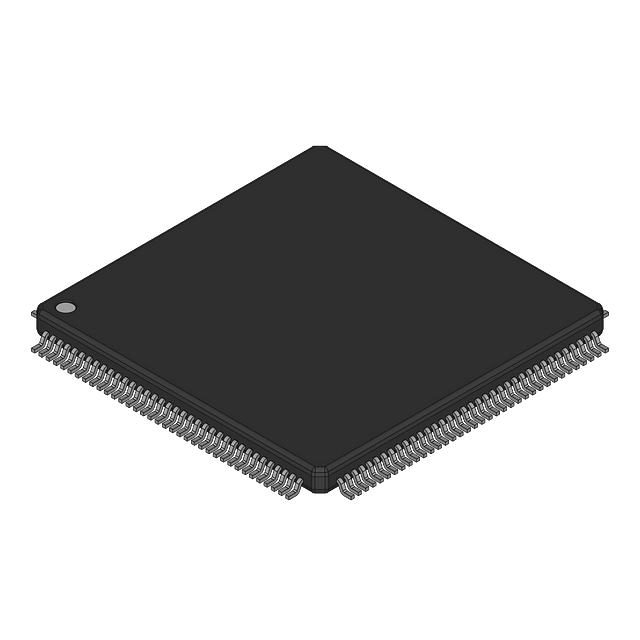

Product Images
