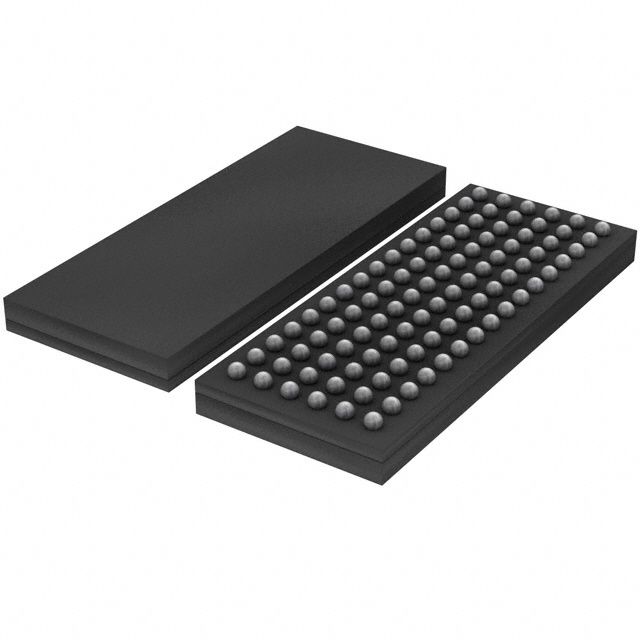

The SSTU32864EC,557 is a surface mount buffer IC from NXP, packaged in LFBGA. It operates within a temperature range of 0 to 70°C and has a maximum supply voltage of 1.9V. The device has a high level output current of -8mA and a low level output current of 8mA. It is capable of operating at a maximum frequency of 450MHz and has a propagation delay of 1.8ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP SSTU32864EC,557 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP SSTU32864EC,557 technical specifications.
| Package/Case | LFBGA |
| High Level Output Current | -8mA |
| Logic Function | Buffer |
| Low Level Output Current | 8mA |
| Max Frequency | 450MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 1425 |
| Packaging | Tray |
| Propagation Delay | 1.8ns |
| RoHS Compliant | No |
| RoHS | Not Compliant |
Download the complete datasheet for NXP SSTU32864EC,557 to view detailed technical specifications.
