2 x 6W stereo audio power amplifier in an 18-pin HDIP package. Features 20dB voltage gain, 80dB PSRR, and operates from a 6V to 18V supply voltage with a typical 14.4V operating voltage. Maximum power dissipation is 15W, with a supply current of 40mA. This through-hole mount component is lead-free and RoHS compliant, with an operating temperature range of -40°C to 85°C.
PackageHDIP
Current40mA
MountingThrough Hole
Power6W
Quick Jump:
Technical Specifications
NXP TDA1517P/N3,112 technical specifications.
General
| Package/Case | HDIP |
| Gain | 20dB |
| Height | 3.7mm |
| Lead Free | Lead Free |
| Length | 21.85mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 6W |
| Max Power Dissipation | 15W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 6V |
| Mount | Through Hole |
| Operating Supply Voltage | 14.4V |
| Output Power | 6W |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 15W |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 40mA |
| Supply Type | Single |
| Voltage Gain | 20dB |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP TDA1517P/N3,112 Datasheet
Download the complete datasheet for NXP TDA1517P/N3,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

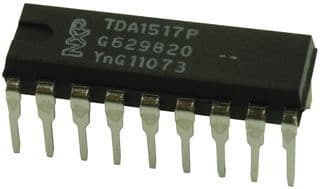

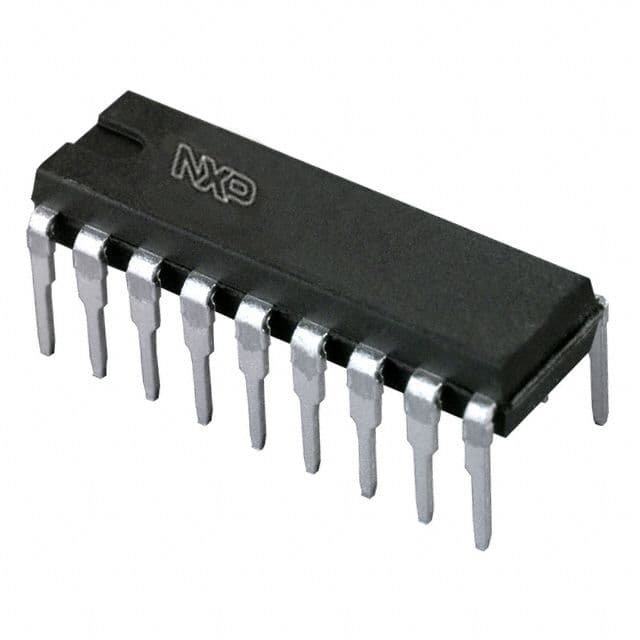

Product Images
