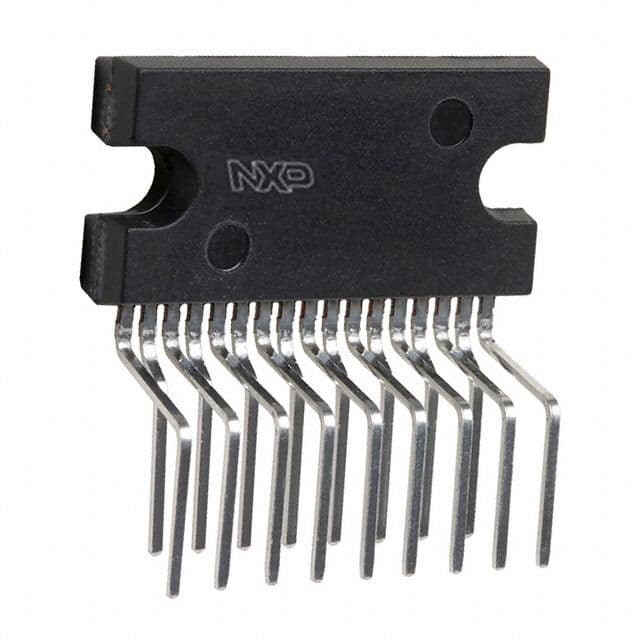

The TDA8566Q/N2S,112 is a dual audio amplifier from NXP, featuring a gain of 26dB and an output power of 40W. It operates within a temperature range of -40°C to 85°C and is compatible with lead-free processes. The device is packaged in SOT-243-1 and is available in quantities of 552, packaged in rail/Tube. It can handle a maximum supply voltage of 18V and a maximum power dissipation of 60W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP TDA8566Q/N2S,112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP TDA8566Q/N2S,112 technical specifications.
| Package/Case | SOT-243-1 |
| Gain | 26dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 55W |
| Max Power Dissipation | 60W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 6V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Operating Supply Voltage | 14.4V |
| Output Power | 40W |
| Package Quantity | 552 |
| Packaging | Rail/Tube |
| Power Dissipation | 60W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 115mA |
| Voltage Gain | 26dB |
| RoHS | Compliant |
Download the complete datasheet for NXP TDA8566Q/N2S,112 to view detailed technical specifications.
