Automotive CAN transceiver IC supporting 5Mbps data rates. Features normal, sleep, and standby modes with a 4.5V to 5.5V supply voltage range. Operates across -40°C to 150°C with 120mV receiver hysteresis. This half-duplex, single-transceiver component is surface mountable in a 14-pin HVSON package, supplied on tape and reel. RoHS compliant and lead-free.
PackageHVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP TJA1043TK/1Y technical specifications.
General
| Package/Case | HVSON |
| Data Rate | 5Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 120mV |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Simplex/Duplex | Half Duplex |
Compliance
| RoHS | Compliant |
Datasheet
NXP TJA1043TK/1Y Datasheet
Download the complete datasheet for NXP TJA1043TK/1Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

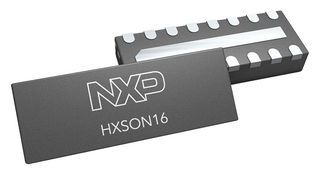

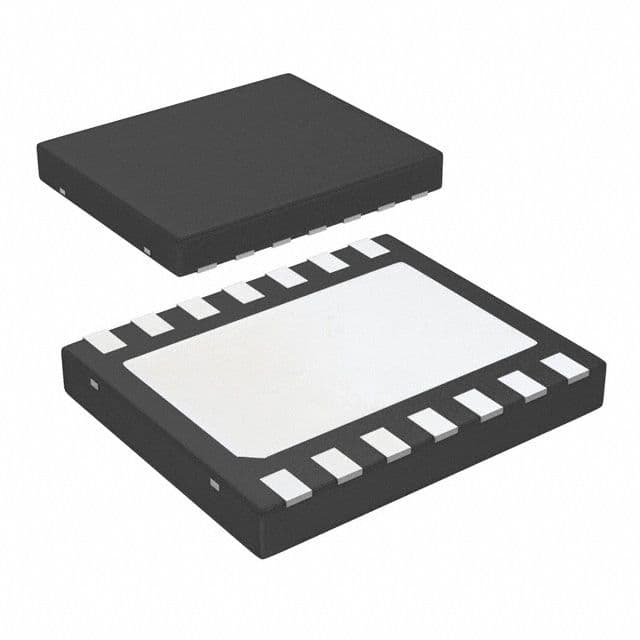

Product Images
