The TJA1145TK/FDJ is a 1Mbps half-duplex transceiver with a package type of HVSON and a operating temperature range of -40°C to 150°C. It operates on a supply voltage of 4.75V to 5.5V. The transceiver is mounted on the surface and is available in tape and reel packaging. It is not radiation hardened and is compliant with RoHS regulations.
PackageHVSON
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the NXP TJA1145TK/FDJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
NXP TJA1145TK/FDJ technical specifications.
General
| Package/Case | HVSON |
| Data Rate | 1Mbps |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Receiver Hysteresis | 200mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
Compliance
| RoHS | Compliant |
Datasheet
NXP TJA1145TK/FDJ Datasheet
Download the complete datasheet for NXP TJA1145TK/FDJ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

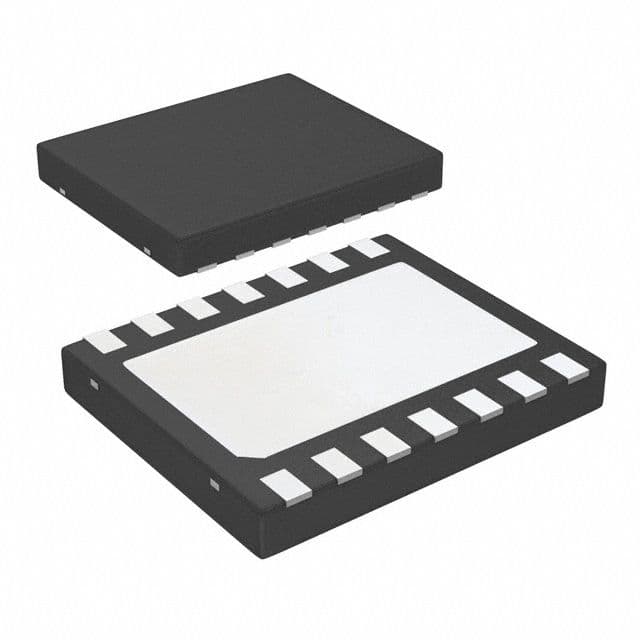

Product Images
