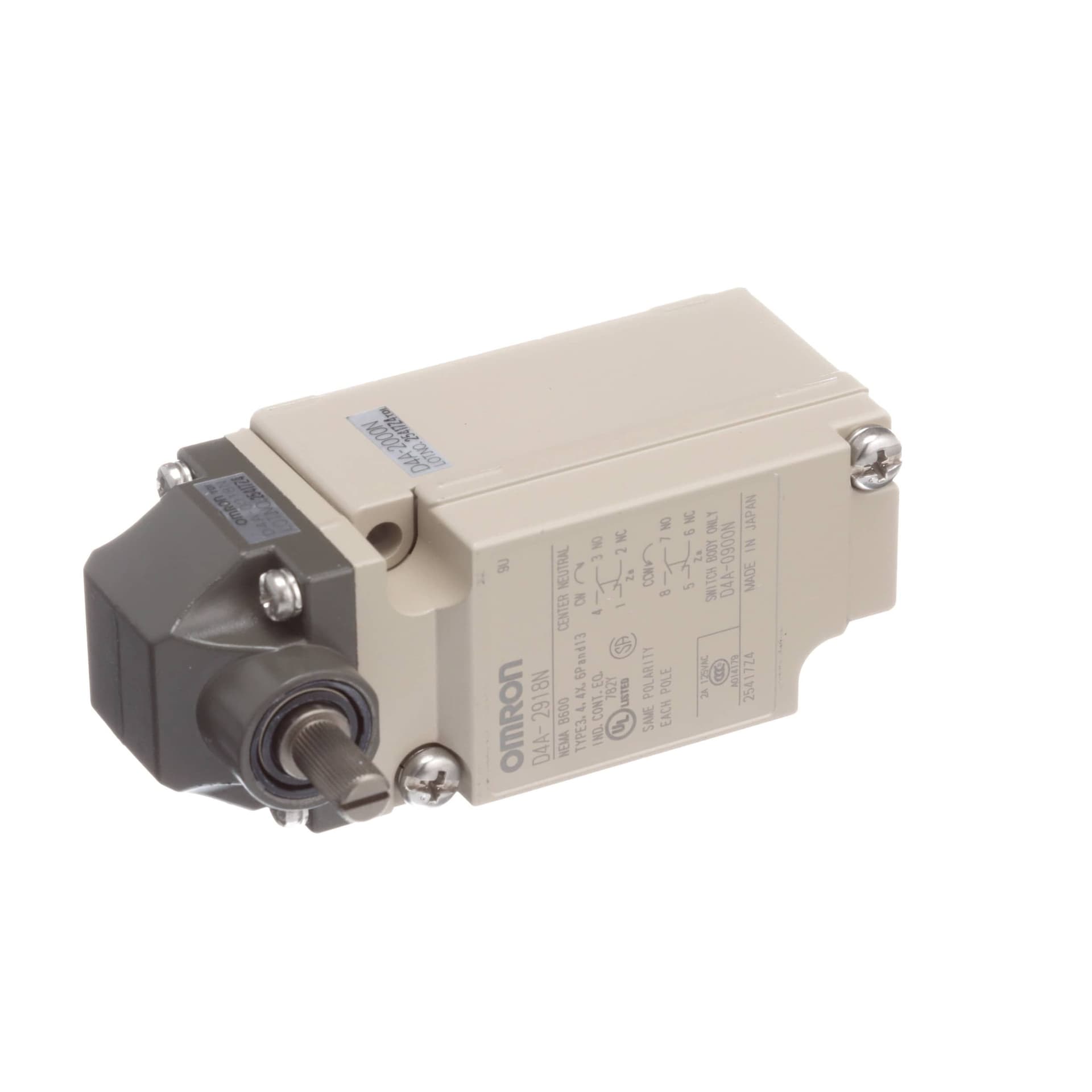

DPDT snap-action switch with a 5A current rating at 125V AC. Features a rotary actuator, right-angle orientation, and screw termination. Rated for 600V AC and 250V DC maximum, with a 30V DC rating. Offers 750,000 electrical cycles and 30,000,000 mechanical cycles. IP67, waterproof, and dust-tight, operating from -40°C to 100°C. Mounts to panel or chassis via screws.
Sign in to ask questions about the Omron D4A-2918-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D4A-2918-N technical specifications.
| Actuator Type | Rotary |
| Approvals | UL, CSA, CCC |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 44mm |
| Electrical Life | 750000Cycles |
| Length | 75.5mm |
| Max Operating Temperature | 100°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 30000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 0.39N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4A |
| Switch Function | Mom-Off-Mom |
| Termination | Screw |
| Throw Configuration | DPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 42mm |
| RoHS | Compliant |
