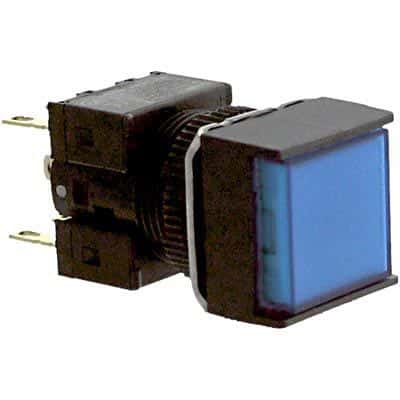

DPDT pushbutton switch featuring a 5A current rating at 125VAC and 3A at 30VDC. This illuminated switch boasts a blue square actuator with a 3.5mm length, designed for panel mounting with solder termination. It offers a robust electrical life of 100,000 cycles and a mechanical life of 2,000,000 cycles, with IP65 and IP66 ratings for water and dust resistance. Operating within a temperature range of -10°C to 55°C, this lead-free component is UL and CE approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A165-AAM-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A165-AAM-2 technical specifications.
| Actuator Color | Blue |
| Actuator Length | 3.5mm |
| Actuator Type | Square, Button |
| Approvals | UL, CE |
| Contact Current Rating | 3A |
| Contact Material | Resin, Polyacrylate |
| Current Rating | 5A |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 18mm |
| Life (Hours) | 100000Hour |
| Max Operating Temperature | 55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Snap in, Panel, Front |
| Number of Poles | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, IP66, Water Resistant, Dust Tight |
| Series | A16 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 18mm |
| RoHS | Compliant |
