The Omron A165-ARA-2 is a 2-pole pushbutton switch with a contact current rating of 3A and a maximum operating temperature of 55°C. It has a mechanical life of 200,000 cycles and an electrical life of 100,000 cycles. The switch is rated for 125V AC and 30V DC and is compliant with UL and CE approvals. It has a resin and polyacrylate contact material and is lead-free. The switch is mounted on a panel in a vertical orientation and has a throw configuration of DPDT.
Current Rating5A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A165-ARA-2 technical specifications.
General
| Actuator Type | Square, Button |
| Approvals | UL, CE |
| Contact Current Rating | 3A |
| Contact Material | Resin, Polyacrylate |
| Current Rating | 5A |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Front |
| Number of Poles | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight, IP66 |
| Series | A16 |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A165-ARA-2 Datasheet
Download the complete datasheet for Omron A165-ARA-2 to view detailed technical specifications.
No datasheet is available for this part.

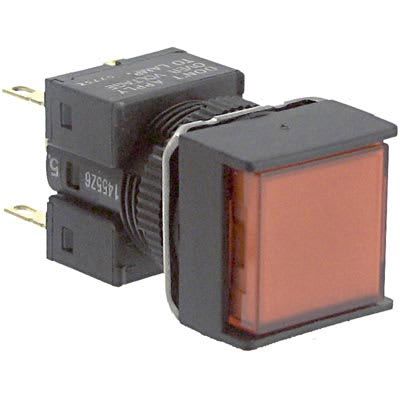

Product Images
