Current Rating5A
MountingSnap in, Panel, Front
Quick Jump:
Technical Specifications
Omron A165-JAA-2 technical specifications.
General
Approvals
UL, CE
Contact Current Rating
3A
Contact Material
Resin, Polyacrylate
Current Rating
5A
Electrical Life
100000Cycles
Lead Free
Lead Free
Life (Hours)
100000Hour
Max Operating Temperature
55°C
Mechanical Life
200000Cycles
Min Operating Temperature
-10°C
Mount
Snap in, Panel, Front
Number of Poles
2
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight, IP66
Series
A16
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A165-JAA-2 Datasheet
Download the complete datasheet for Omron A165-JAA-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

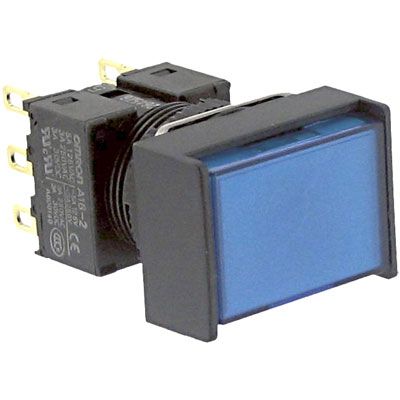

Product Images
