Illuminated pushbutton switch featuring a DPDT momentary (On-Mom) function and a round yellow actuator. Rated for 5A at 250VAC and 30VDC, with a contact current rating of 3A. Offers a mechanical life of 2,000,000 cycles and an electrical life of 100,000 cycles. IP65 and IP66 rated for water and dust resistance, with a snap-in panel mount and solder termination.
Current Rating5A
MountingSnap in, Panel, Front
Quick Jump:
Technical Specifications
Omron A165-TYM-2 technical specifications.
General
Actuator Type
Round, Button
Approvals
UL, CSA, CE
Contact Current Rating
3A
Contact Material
Resin, Polyacrylate
Current Rating
5A
Depth
18mm
Diameter
18mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
18mm
Max Current Rating
5A
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
2000000Cycles
Mount
Snap in, Panel, Front
Number of Poles
2
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP65, IP66, Water Resistant, Dust Tight
Series
A16
Switch Function
On-Mom
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A165-TYM-2 Datasheet
Download the complete datasheet for Omron A165-TYM-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

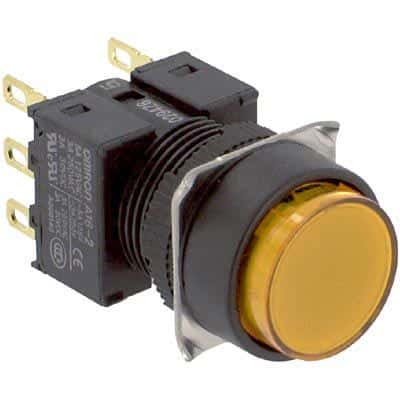

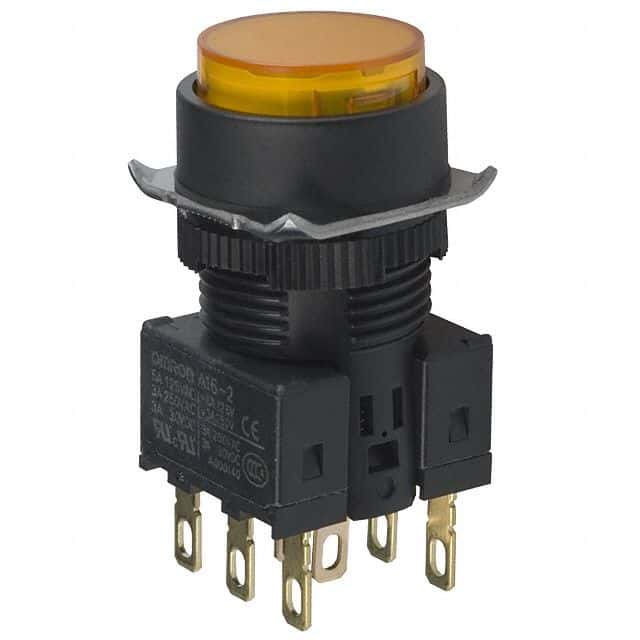

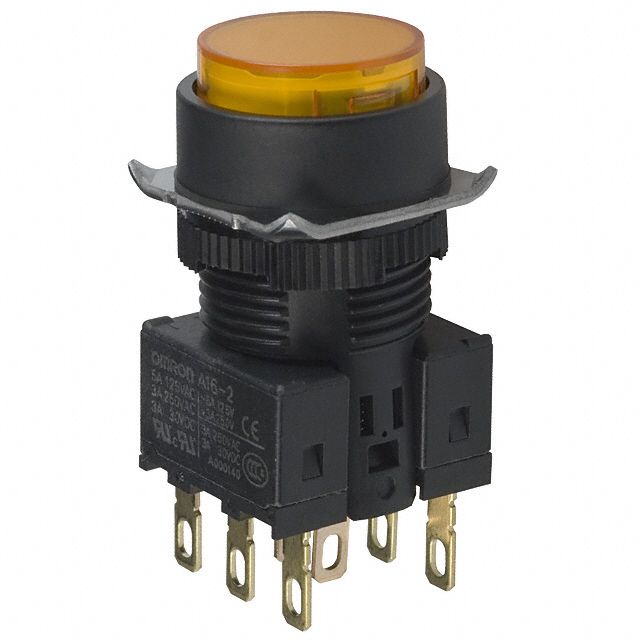

Product Images
