Illuminated pushbutton switch featuring a 30mm red mushroom head for emergency stop applications. Offers 3PST-NC (3 Pole Single Throw Normally Closed) contact configuration with a 5A current rating at 250VAC and 125VAC, and 30VDC. Boasts an electrical and mechanical life of 100,000 cycles, with solder termination and panel mount design. Rated IP65 for water and dust resistance, operating between -10°C and 55°C.
Current1A
Current Rating5A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A165E-S-03U technical specifications.
General
Color
Red
Contact Current Rating
10mA
Current Rating
5A
Electrical Life
100000Cycles
Head Diameter
30mm
Length
43mm
Max Operating Temperature
55°C
Mechanical Life
100000Cycles
Min Operating Temperature
-10°C
Mount
Panel, Front
Operating Supply Voltage
250V
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A165E
Supply Current
1A
Switch Function
On-Off
Termination
Solder
Throw Configuration
SPST, 3PST, TPST
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A165E-S-03U Datasheet
Download the complete datasheet for Omron A165E-S-03U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

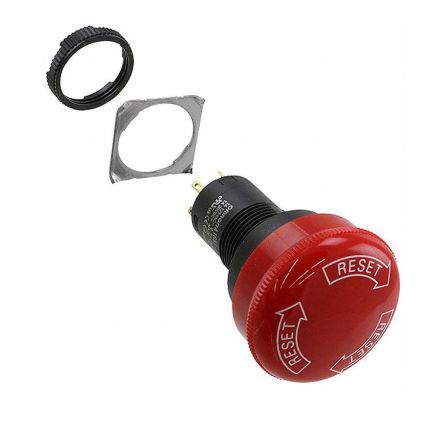

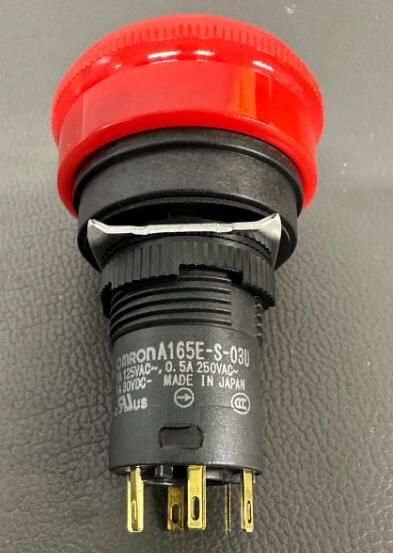

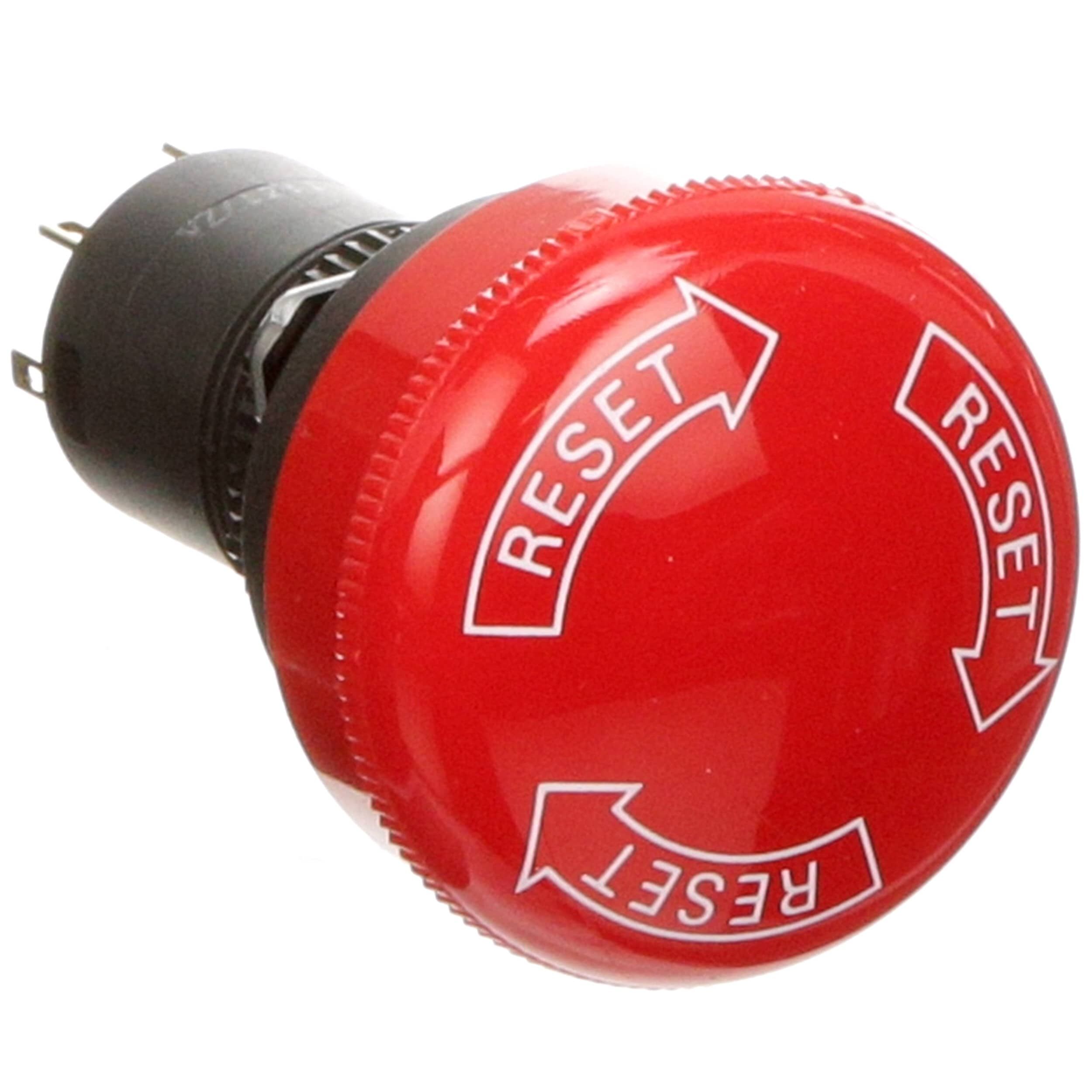

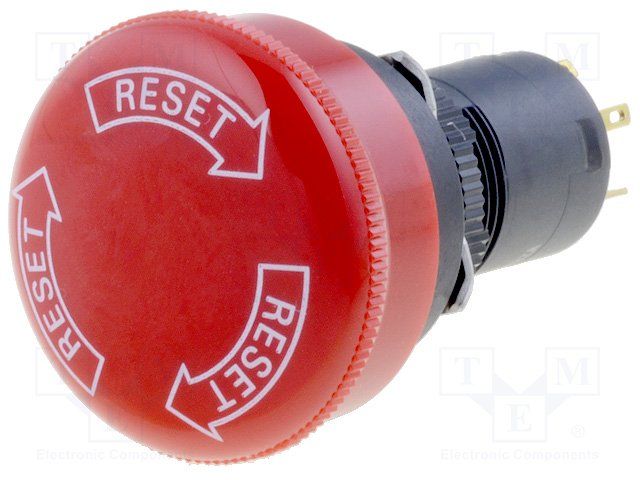

Product Images
