Quick Jump:
Technical Specifications
Omron A165ES02 technical specifications.
General
Actuator Diameter
30mm
Color
Red
Contact Current Rating
10mA
Current Rating
5A
Electrical Life
100000Cycles
Head Diameter
30mm
Lead Free
Lead Free
Max Current Rating
5A
Max Operating Temperature
55°C
Mechanical Life
100000Cycles
Min Operating Temperature
-10°C
Mount
Panel, Front
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
A165E
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
SPST, DPST
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Omron A165ES02 Datasheet
Download the complete datasheet for Omron A165ES02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

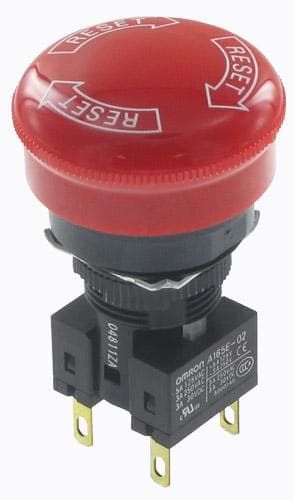

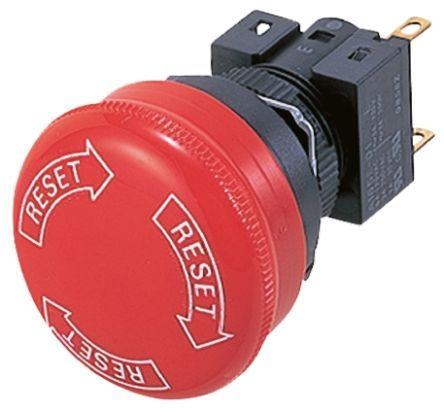

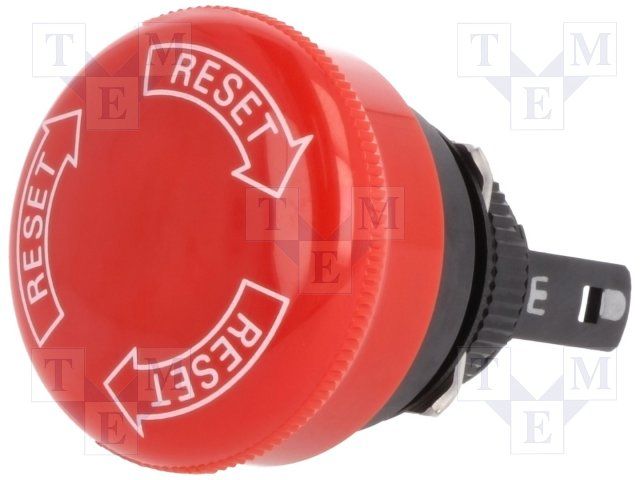

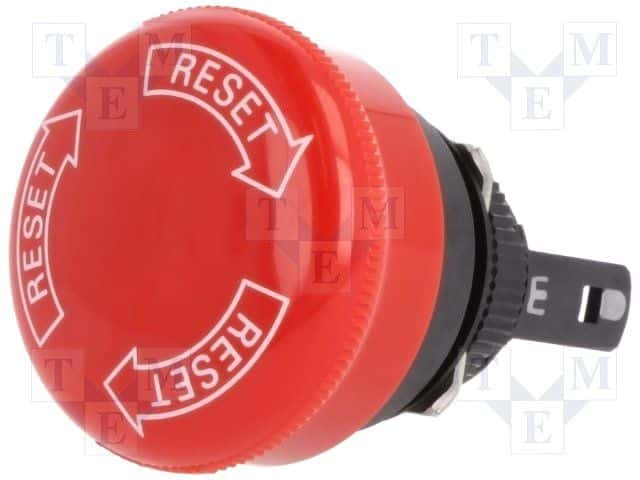

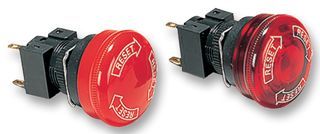

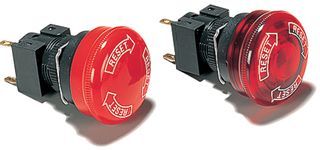

Product Images
