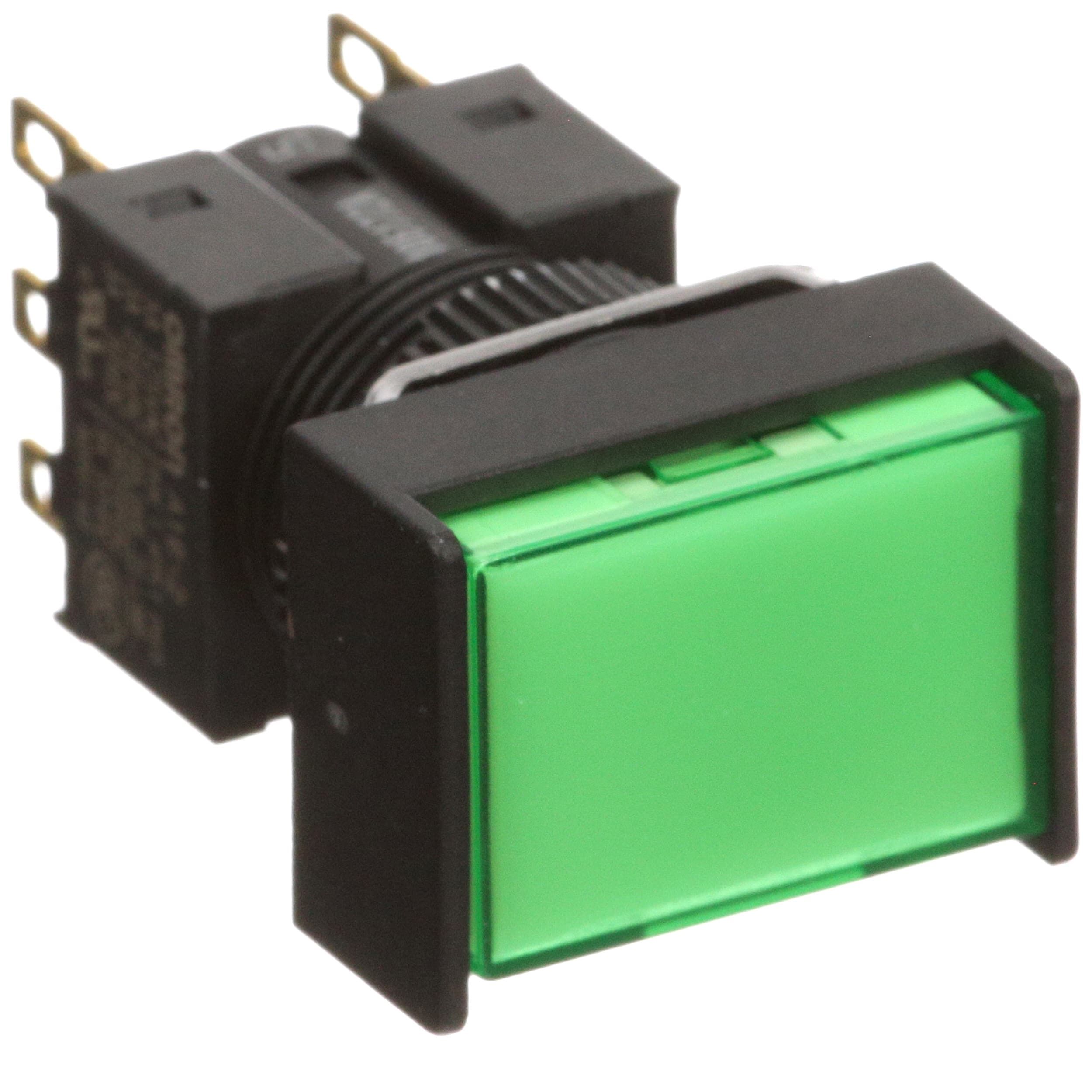

Illuminated pushbutton switch featuring DPDT momentary (On-Mom) contact configuration with a 5A, 125VAC rating and 30VDC rating. This switch offers a silver contact material, a 10mA contact current rating, and a robust electrical life of 100,000 cycles. The green LED illumination and green actuator are housed in a durable polycarbonate and resin body, with snap-in, panel mounting and solder termination. Rated IP65 and IP66 for water and dust resistance, it operates within a -10°C to 55°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A165L-JGM-24D-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A165L-JGM-24D-2 technical specifications.
| Actuator Color | Green |
| Actuator Length | 3.5mm |
| Approvals | UL |
| Body Material | Resin, Polycarbonate |
| Contact Current Rating | 10mA |
| Contact Material | Silver |
| Current Rating | 5A |
| Depth | 18mm |
| Electrical Life | 100000Cycles |
| Illumination Color | Green |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Length | 24mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 5A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000000Cycles |
| Mount | Snap in, Panel, Front |
| Number of Poles | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, IP66, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A16 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 23.9mm |
| RoHS | Compliant |
