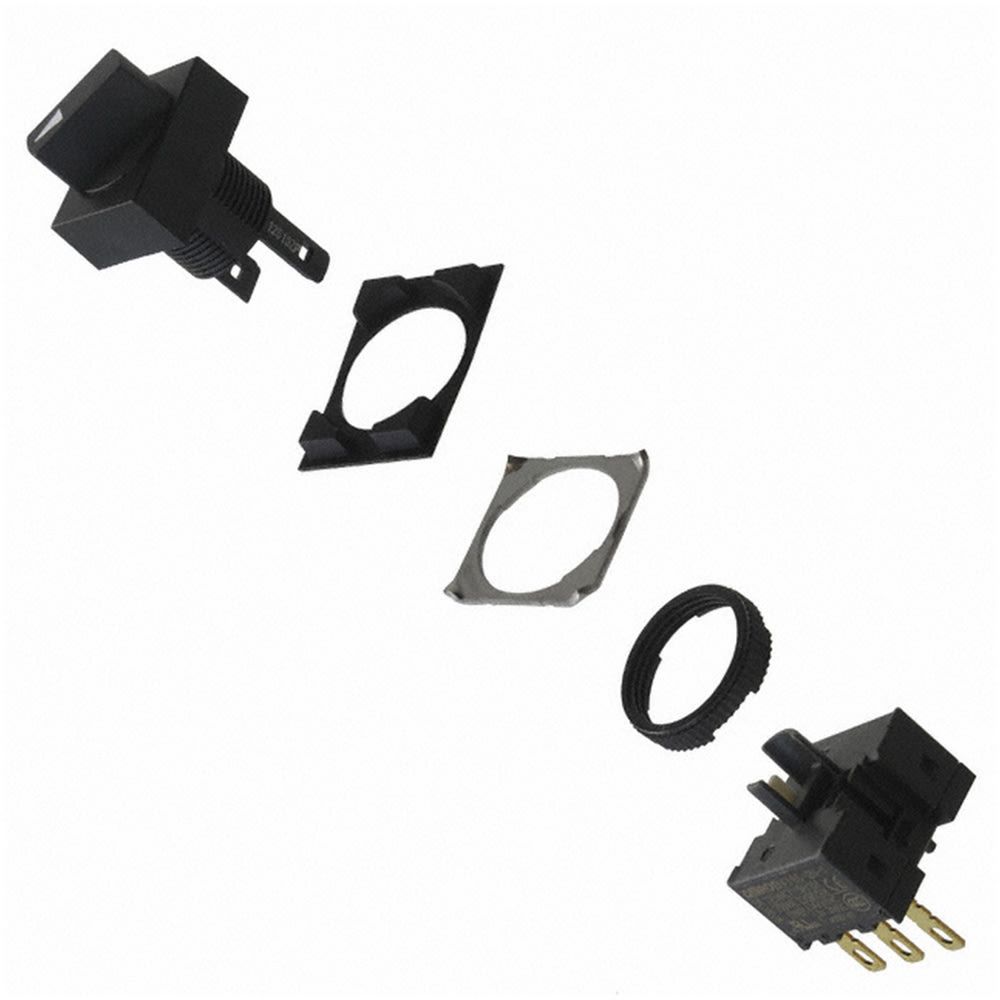

The Omron A165S-J2M-1 is a 5A SPDT On-On panel switch with a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. It has a DC rated voltage of 30V and an AC voltage rating of 125V. The switch is rated for 100,000 electrical cycles and 250,000 mechanical cycles. It is water resistant and dust tight, meeting IP65 standards, and is compliant with RoHS regulations. The switch is available in a bulk packaging and has a quick connect termination.
Checking distributor stock and pricing after the page loads.
Omron A165S-J2M-1 technical specifications.
| Contact Current Rating | 5A |
| Current Rating | 5A |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Max Current Rating | 5A |
| Max Operating Temperature | 55°C |
| Mechanical Life | 250000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Number of Positions | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A165S |
| Switch Function | On-On |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
