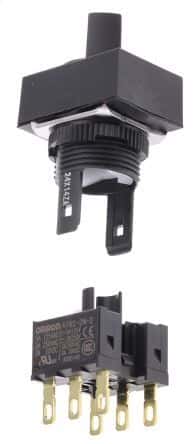

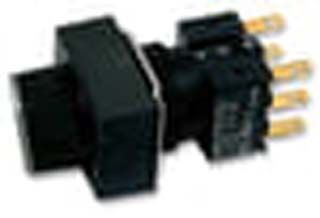

DPDT rotary switch, non-illuminated, featuring a 2-pole, 2-position configuration with a 90° index angle. Offers a 5A current rating and 3A contact current rating, with a 250V AC voltage rating and 30V DC rated voltage. Designed for panel mounting with solder termination, this switch boasts an electrical life of 100,000 cycles and a mechanical life of 250,000 cycles. Rated IP65 for water and dust resistance, it operates within a temperature range of -10°C to 55°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A165S-J2M-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A165S-J2M-2 technical specifications.
| Approvals | UL, TUV, CCC, CSA, VDE |
| Color | Black |
| Contact Current Rating | 3A |
| Current Rating | 5A |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Index Angle | 90° |
| Lead Free | Lead Free |
| Max Current Rating | 5A |
| Max Operating Temperature | 55°C |
| Mechanical Life | 250000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | A165S |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 24mm |
| RoHS | Compliant |
