SPDT rotary selector switch with a 5A, 125VAC contact current rating. Features a 90° index angle and 2 positions, offering an On-On switch function. Designed for panel mounting with solder termination, it boasts an electrical life of 100,000 cycles and a mechanical life of 250,000 cycles. Operating temperature range is -10°C to 55°C, with IP65, water-resistant, and dust-tight ratings.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Omron A165S-T2M-1 technical specifications.
General
| Contact Current Rating | 5A |
| Current Rating | 5A |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Index Angle | 90° |
| Lead Free | Lead Free |
| Max Current Rating | 5A |
| Max Operating Temperature | 55°C |
| Mechanical Life | 250000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A165S |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A165S-T2M-1 Datasheet
Download the complete datasheet for Omron A165S-T2M-1 to view detailed technical specifications.
No datasheet is available for this part.

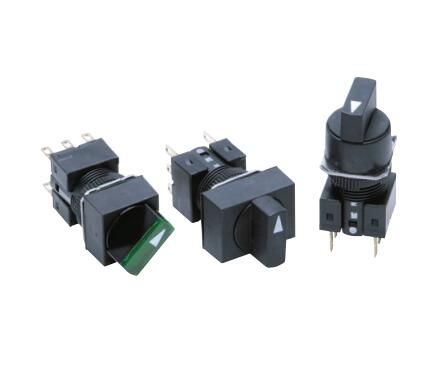

Product Images
