3-position DPDT selector switch with a 5A, 250VAC rating and 30VDC rating. Features quick connect termination, panel mount, and vertical orientation. Illuminated with a red LED lens, this switch offers a 10mA contact current rating and a mechanical life of 250,000 cycles. It is IP65 rated, water and dust tight, and RoHS compliant.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Omron A165W-T3MR-24D-2 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Plastic
Contact Current Rating
10mA
Current Rating
5A
Electrical Life
100000Cycles
Illumination Type
Illuminated, LED
Lead Free
Lead Free
Lens Color
Red
Max Current Rating
5A
Max Operating Temperature
55°C
Mechanical Life
250000Cycles
Min Operating Temperature
-10°C
Mount
Panel
Number of Poles
2
Number of Poles per Deck
2
Number of Positions
3
Orientation
Vertical
Package Quantity
1
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
A165W
Switch Function
On-On-On
Termination
Quick Connect
Throw Configuration
DPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A165W-T3MR-24D-2 Datasheet
Download the complete datasheet for Omron A165W-T3MR-24D-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

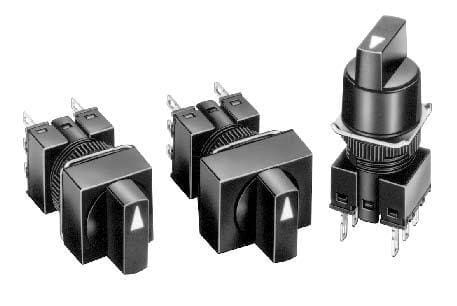

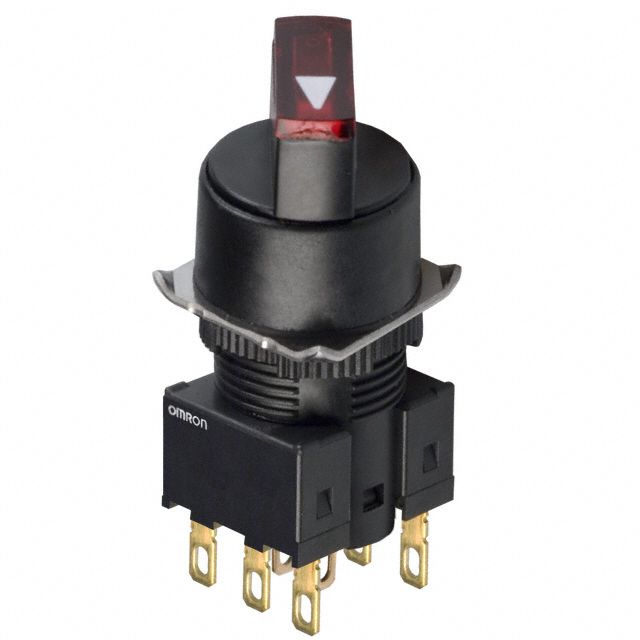

Product Images
