Omron
A16L-AAA-24D-1
Switch Push Button N.O./N.C. SPDT Square Button 5A 250VAC 30VDC Alternate Contact Panel Mount Solder
Current Rating5A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A16L-AAA-24D-1 technical specifications.
General
Actuator Type
Square, Button
Contact Current Rating
10mA
Current Rating
5A
Electrical Life
100000Cycles
Illumination Color
Blue
Illumination Type
LED
Lead Free
Lead Free
Length
18mm
Max Operating Temperature
55°C
Mechanical Life
200000Cycles
Min Operating Temperature
-10°C
Mount
Panel, Front
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP40
Series
A16
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
18mm
Compliance
RoHS
Compliant
Datasheet
Omron A16L-AAA-24D-1 Datasheet
Download the complete datasheet for Omron A16L-AAA-24D-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

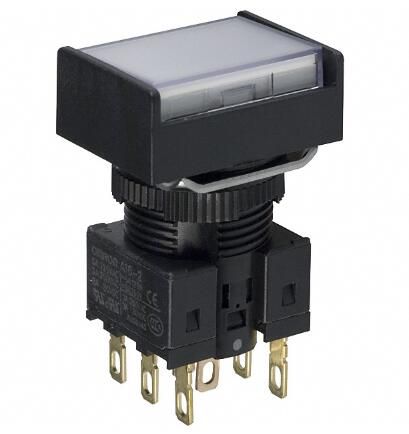

Product Images
