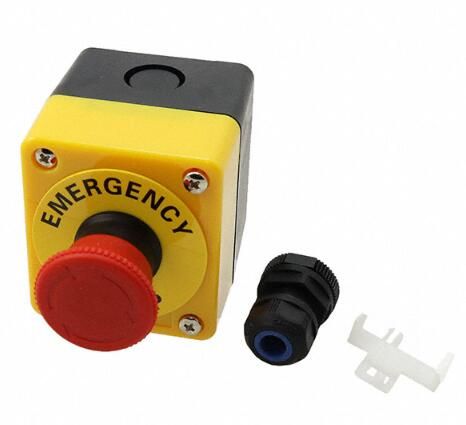

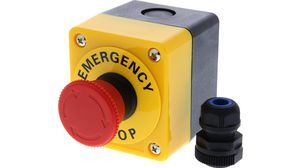

DPST-NC pushbutton switch with a 10A current rating and 440VAC voltage rating. Features a polycarbonate construction, IP65 water and dust-tight rating, and a wide operating temperature range of -20°C to 70°C. Offers 300,000 electrical and mechanical life cycles, with screw termination for secure connections. Mounts via snap-in, panel, front, or chassis methods.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A22E-M-02B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A22E-M-02B technical specifications.
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Life (Hours) | 300000Hour |
| Material | Polycarbonate |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Snap in, Panel, Front, Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A22E |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
