The A22E-MP-11 is a 40mm red pushbutton switch from Omron with a current rating of 10A and a DC rated voltage of 24V. It features a water-resistant and dust-tight design with an IP65 rating, and is suitable for panel mounting. The switch has a mechanical life of 300,000 cycles and an electrical life of 300,000 cycles. It operates within a temperature range of -20°C to 70°C and is compliant with RoHS regulations.
Current Rating10A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A22E-MP-11 technical specifications.
General
| Actuator Diameter | 40mm |
| Color | Red |
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Lead Free | Lead Free |
| Life (Hours) | 300000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A22E |
| Termination | Screw |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A22E-MP-11 Datasheet
Download the complete datasheet for Omron A22E-MP-11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

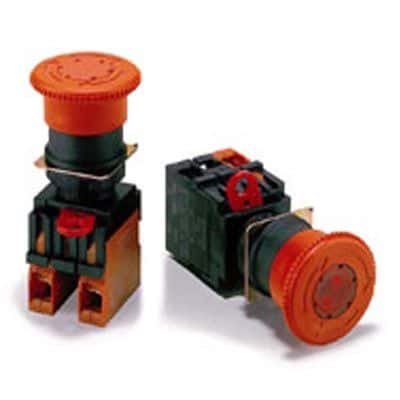

Product Images
