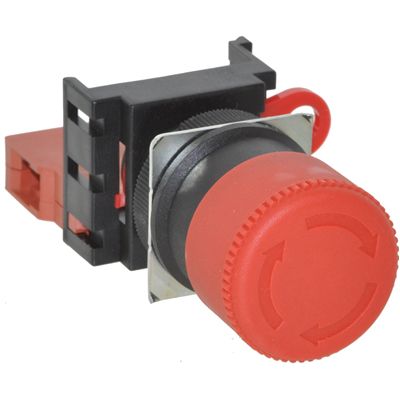

The Omron A22E-S-01 is a red panel mount SPST on-off switch rated for 10A and 110V AC. It has a DC rated voltage of 24V and is designed for use in harsh environments with an IP65 rating. The switch has a mechanical life of 300,000 cycles and an electrical life of 300,000 cycles. It operates within a temperature range of -20°C to 70°C and is RoHS compliant. The switch is packaged in bulk and has a panel mount design with a screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A22E-S-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A22E-S-01 technical specifications.
| Color | Red |
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Lead Free | Lead Free |
| Life (Hours) | 300000Hour |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A22E |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Omron A22E-S-01 to view detailed technical specifications.
