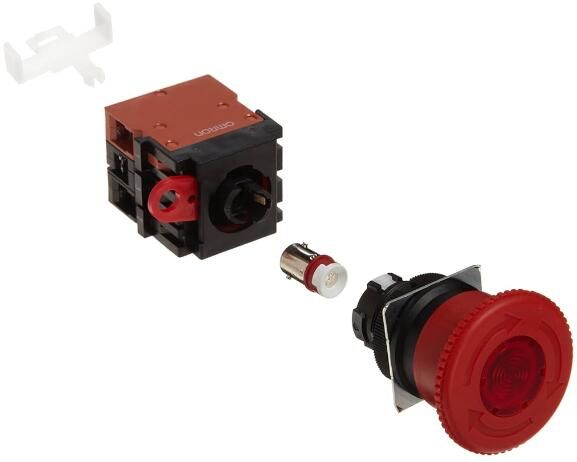

The Omron A22EL-M-24A-11 is a 24V DC rated, 10A current rated, SPST DPST panel mount emergency stop switch with a maximum operating temperature of 55°C and a minimum operating temperature of -20°C. It has a mechanical life of 300,000 cycles and an electrical life of 300,000 cycles. The switch is rated for 110V AC and is RoHS compliant. It is also lead-free and water resistant with an IP65 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A22EL-M-24A-11 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A22EL-M-24A-11 technical specifications.
| Color | Red |
| Current Rating | 10A |
| Electrical Life | 300000Cycles |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Life (Hours) | 300000Hour |
| Max Operating Temperature | 55°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Snap in, Panel, Front |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | A22E |
| Termination | Screw |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Omron A22EL-M-24A-11 to view detailed technical specifications.
