Illuminated pushbutton switch featuring a red, round, full-guard actuator. Offers SPST-NO+NC contact configuration with a 10A current rating and 440V AC / 380V DC max voltage. LED illumination in red, with a panel mount and screw termination. Rated IP65 for water and dust resistance, with electrical and mechanical life of 500,000 cycles and 5,000,000 cycles respectively.
Current Rating10A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A22GR11M technical specifications.
General
| Actuator Color | Red |
| Actuator Length | 0mm |
| Approvals | UL, CE |
| Body Material | Resin, Polycarbonate |
| Contact Current Rating | 10mA |
| Current Rating | 10A |
| Depth | 30mm |
| Electrical Life | 500000Cycles |
| Illumination Color | Red |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 380V |
| Mechanical Life | 5000000Cycles |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Series | A22 |
| Termination | Screw |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A22GR11M Datasheet
Download the complete datasheet for Omron A22GR11M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

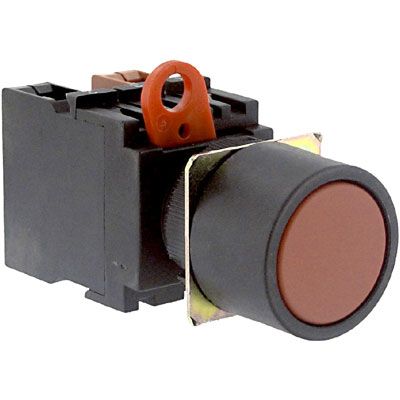

Product Images
