Illuminated pushbutton switch featuring a green square actuator with a 6mm length. Offers SPST-NO+NC and DPST configurations with a 10A current rating and 10mA contact current rating. Rated IP65 for water and dust resistance, it operates within a -20°C to 55°C temperature range. Includes LED illumination in green, with electrical and mechanical life ratings of 500,000 cycles and 5,000,000 cycles respectively. Panel-mounted with screw termination, it is UL and CE approved.
Current Rating10A
MountingPanel, Front
Quick Jump:
Technical Specifications
Omron A22LCGT111M technical specifications.
General
| Actuator Color | Green |
| Actuator Length | 6mm |
| Actuator Type | Square, Button |
| Approvals | UL, CE |
| Body Material | Resin, Polycarbonate |
| Contact Current Rating | 10mA |
| Current Rating | 10A |
| Electrical Life | 500000Cycles |
| Illumination Color | Green |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Life (Hours) | 500000Hour |
| Max Operating Temperature | 55°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 380V |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Series | A22 |
| Termination | Screw |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 110V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Omron A22LCGT111M Datasheet
Download the complete datasheet for Omron A22LCGT111M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

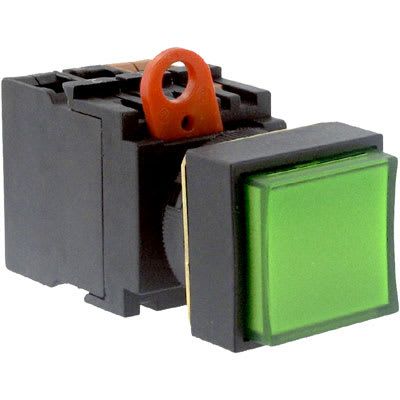

Product Images
