Illuminated pushbutton switch featuring a blue, round button actuator. This SPDT switch offers a 5A current rating and 250V AC/DC maximum voltage rating, with a 125V AC voltage rating. It boasts an electrical and mechanical life of 200,000 cycles and 200,000 hours, operating between -25°C and 80°C. The switch is panel-mounted with solder termination and a straight orientation, illuminated by a blue LED.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Omron A2A-4A technical specifications.
General
| Actuator Color | Blue |
| Actuator Type | Round, Button |
| Color | Blue |
| Current Rating | 5A |
| Electrical Life | 200000Cycles |
| Height | 44.3mm |
| Illumination Color | Blue |
| Illumination Type | LED |
| Length | 19.8mm |
| Life (Hours) | 200000Hour |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 200000Cycles |
| Mount | Panel |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP00 |
| RoHS Compliant | Yes |
| Series | A2A |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron A2A-4A Datasheet
Download the complete datasheet for Omron A2A-4A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

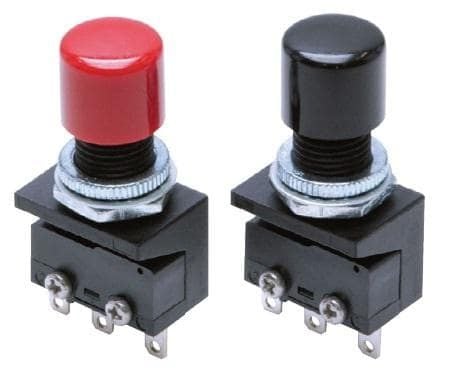

Product Images
